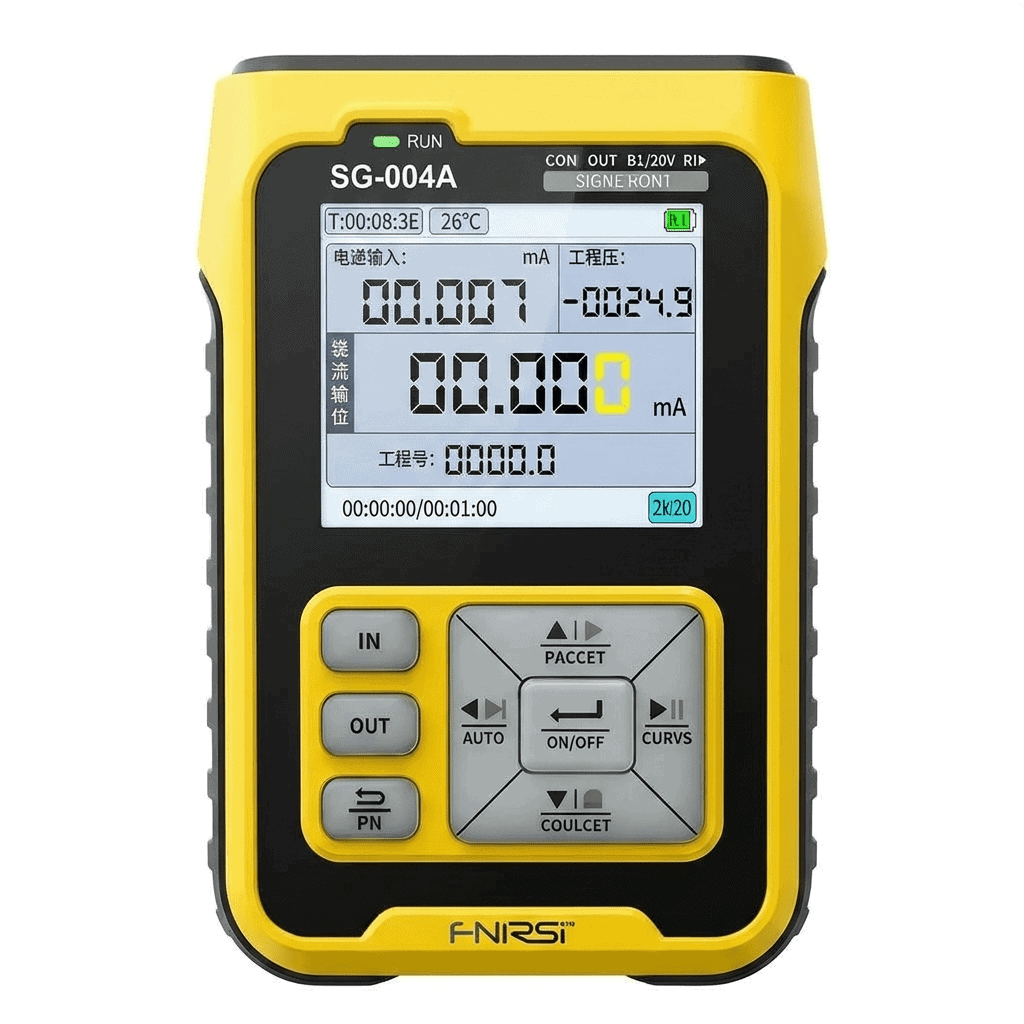

SG-004 Handheld Multi-functional Signal Generator and Process Calibrator
SG-004 Handheld Multi-functional Signal Generator and Process Calibrator 36
SG-004 Handheld Multi-functional Signal Generator and Process Calibrator 35
SG-004 Handheld Multi-functional Signal Generator and Process Calibrator 34

SG-004 Handheld Multi-functional Signal Generator and Process Calibrator

(41 customer reviews)

Original price was: £179.00.Current price is: £119.00. & Free Shipping

2 in stock

Free shipping on orders over $50!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: B8CJF8Q81XKE12AN Categories: , , ,

Description

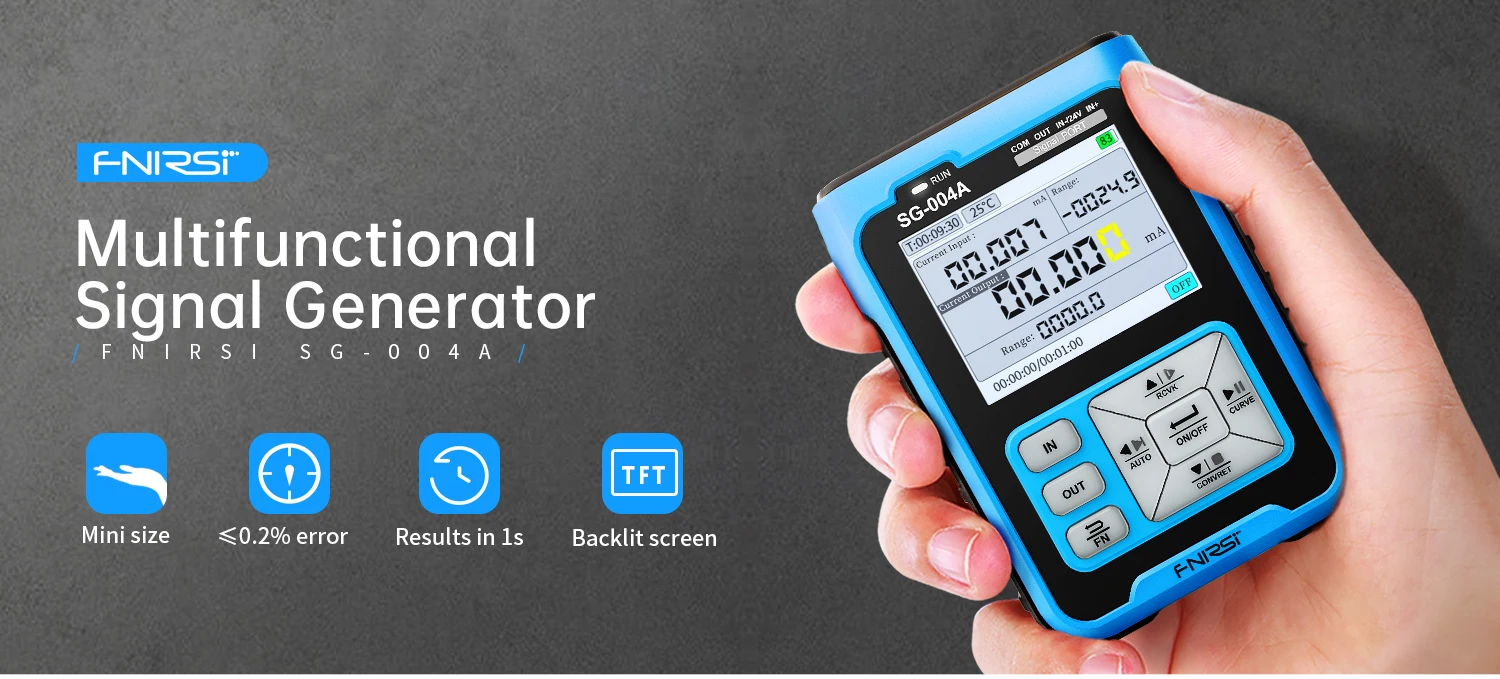

### SG-004 Handheld Multi-functional Signal Generator and Process Calibrator

The SG-004 Handheld Multi-functional Signal Generator and Process Calibrator is a versatile tool designed for professionals in the industrial control sector. This compact device is engineered to perform a wide range of functions, making it an essential instrument for tasks such as PLC system debugging, DSC system simulation, valve positioner adjustments, instrument testing and calibration, as well as inverter testing.

#### Key Features

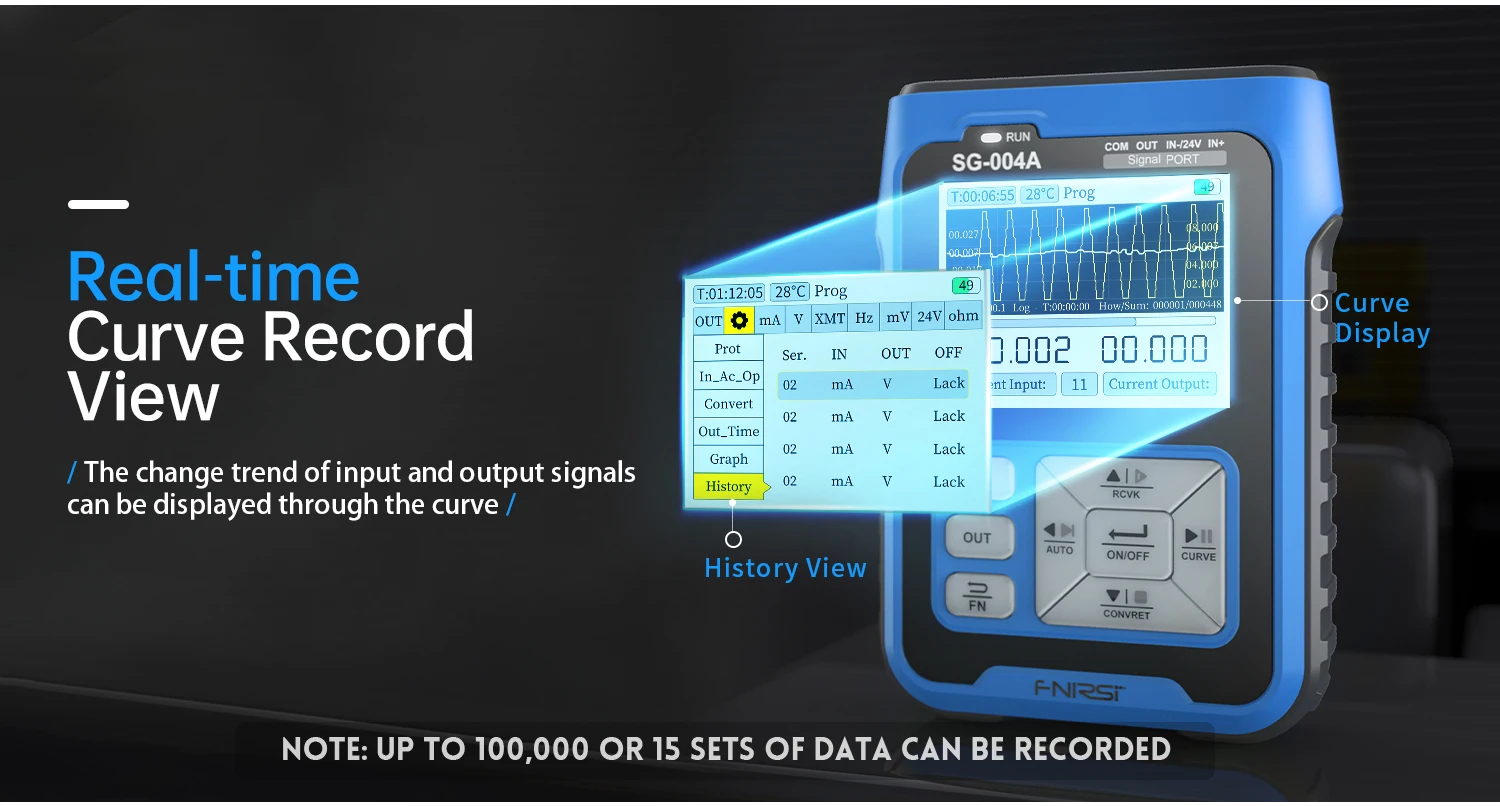

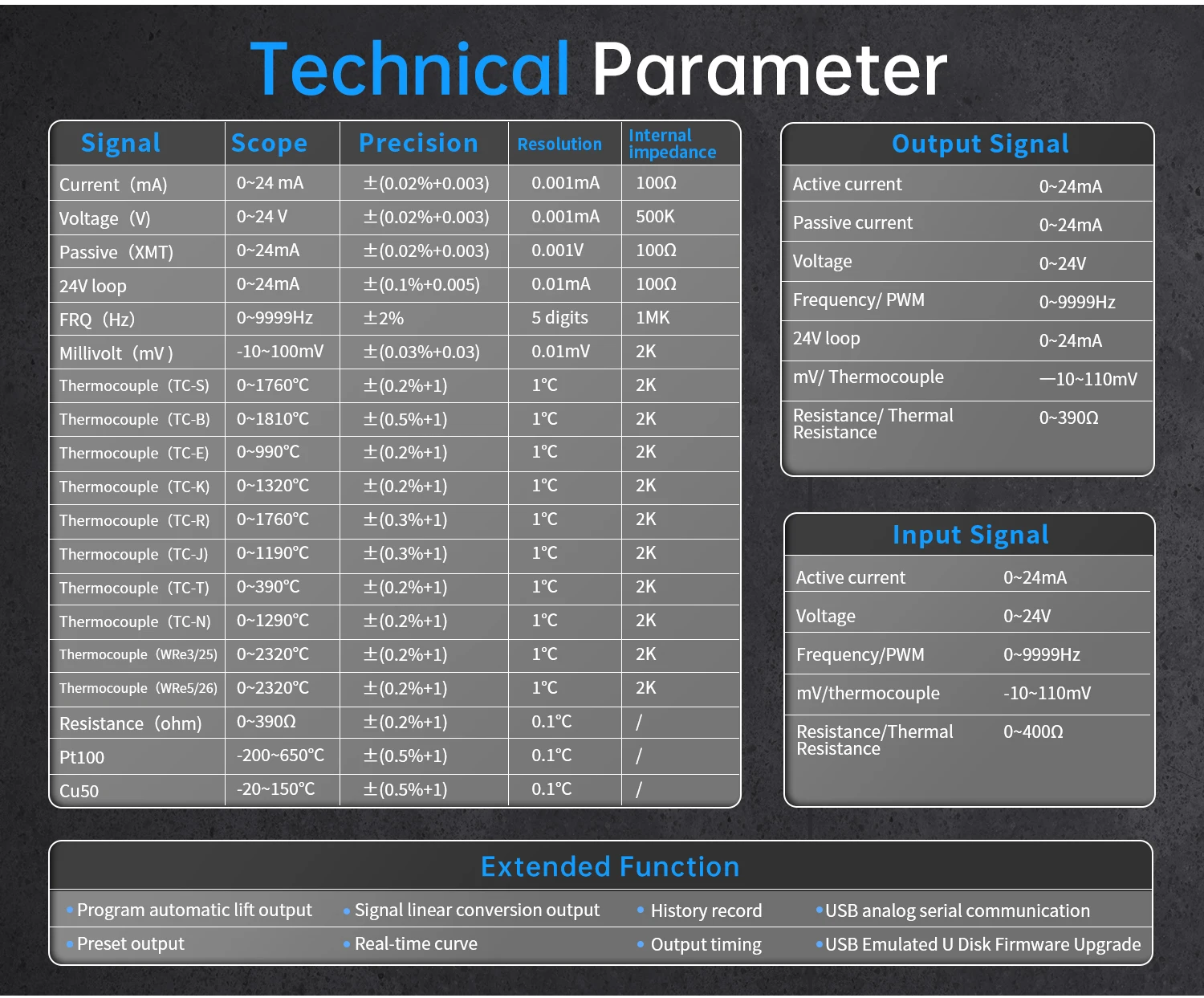

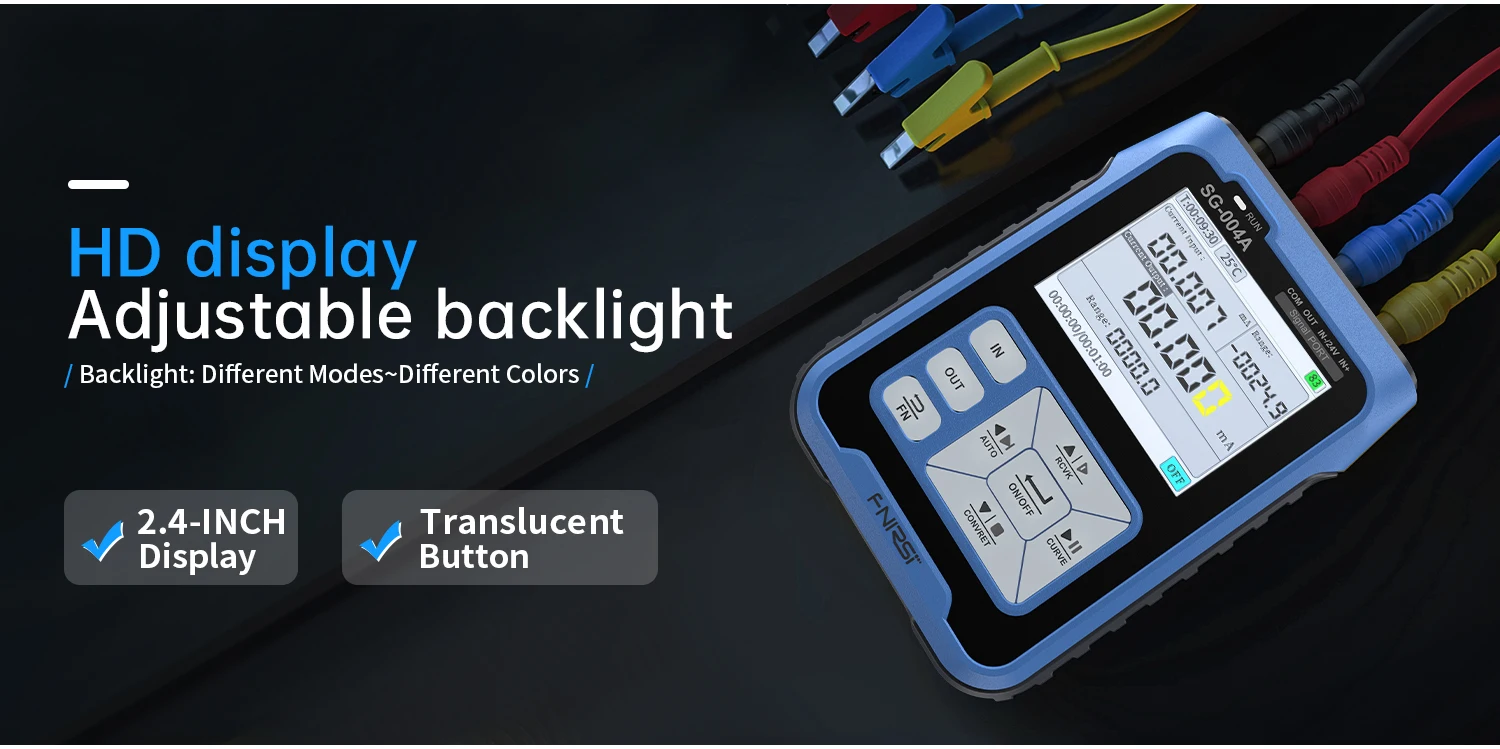

The SG-004 stands out with its real-time curve display, allowing users to visualise the trends of input and output signals. It can record up to 100,000 data points or 15 sets of data, with a frequency range of 0-9999 Hz and a high precision of 0.2%. The device features a high-definition 2.4-inch TFT-LCD screen with backlighting, ensuring clear readability in various lighting conditions. The button backlight changes colour depending on the selected mode, enhancing user experience.

The programmable output function allows for automatic adjustments based on user-defined parameters, supporting monotonic increasing, monotonic decreasing, or cyclic output modes. Additionally, firmware upgrades can be performed easily via USB emulation, similar to using a USB flash drive, ensuring that the device remains up-to-date with the latest features.

#### Portability and Durability

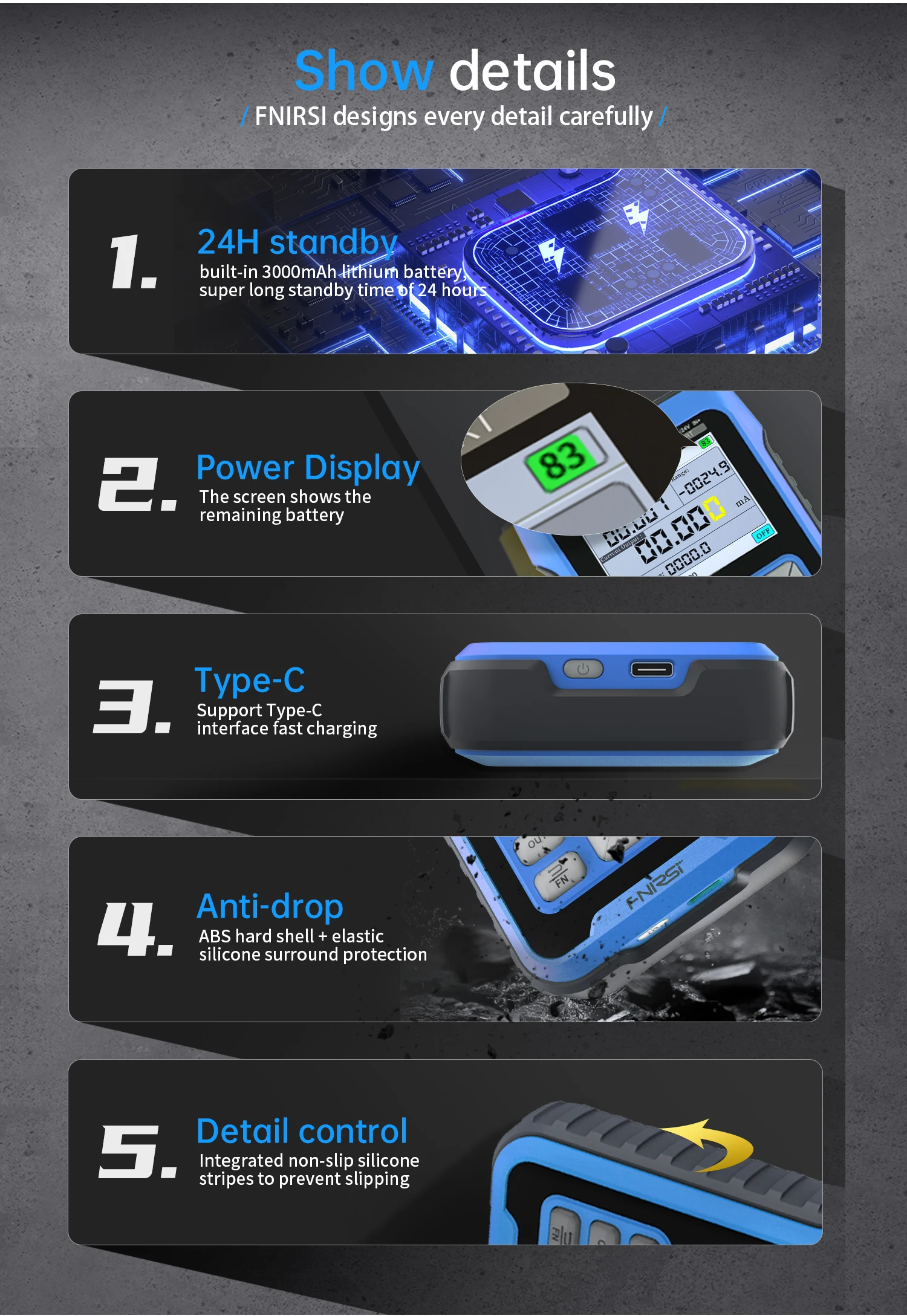

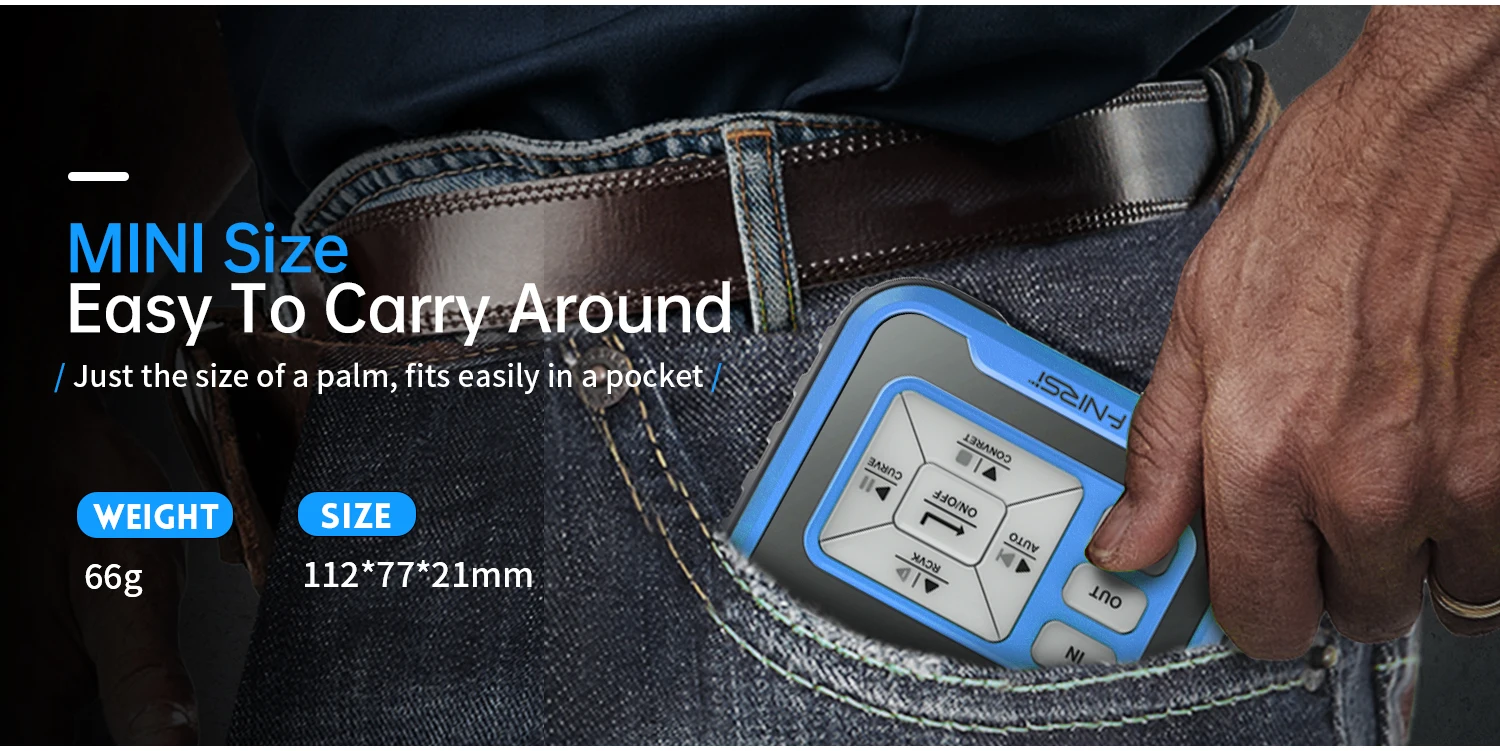

Weighing only 0.050 kg and compact enough to fit in the palm of your hand, the SG-004 is designed for portability. It is equipped with a built-in 3000 mAh lithium battery, providing a standby time of up to 24 hours. The device features a Type-C charging port for convenient recharging on the go. Constructed with an ABS hard shell and surrounded by integrated non-slip silicone, the SG-004 is built to withstand the rigours of daily use.

#### Comprehensive Signal Support

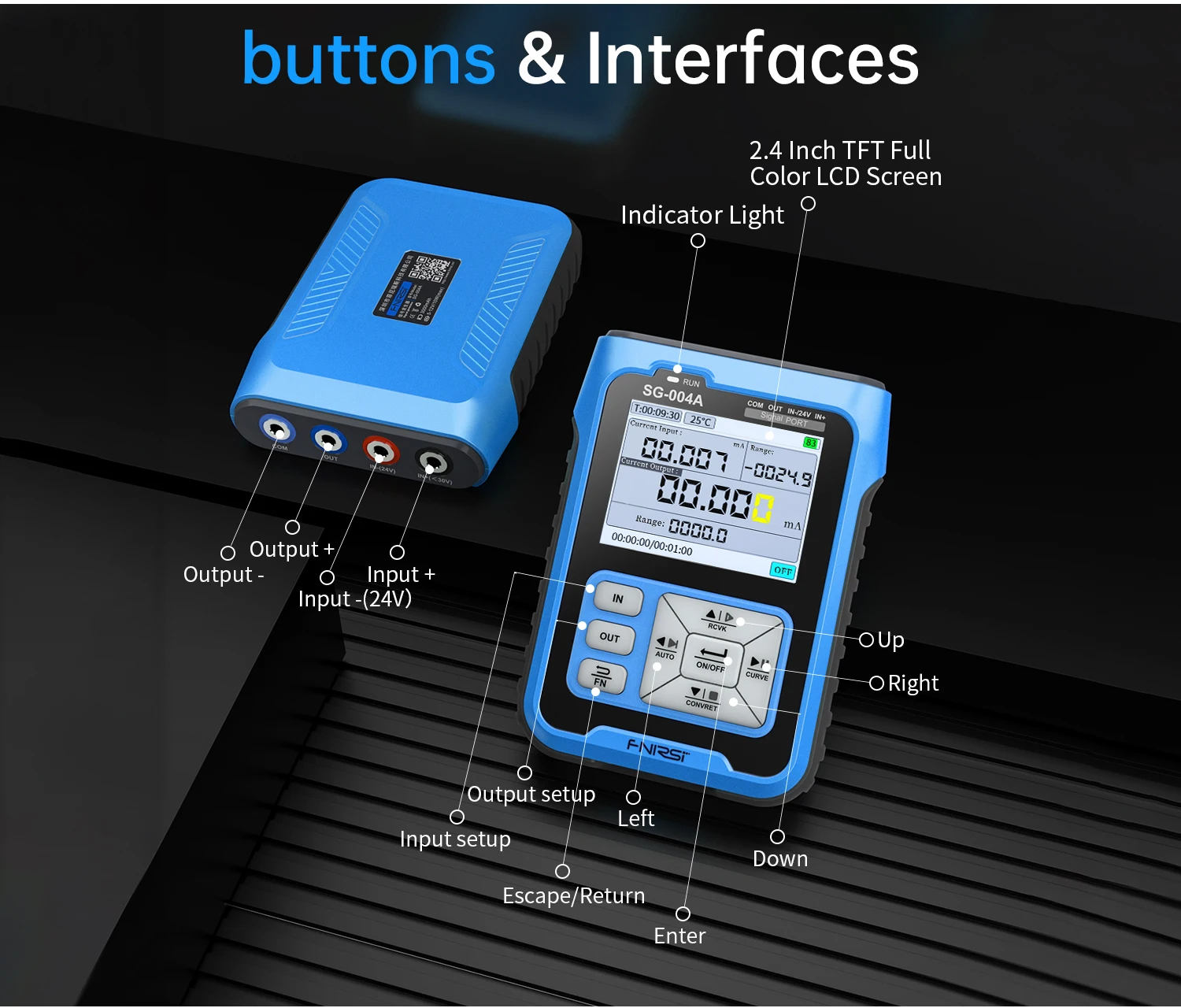

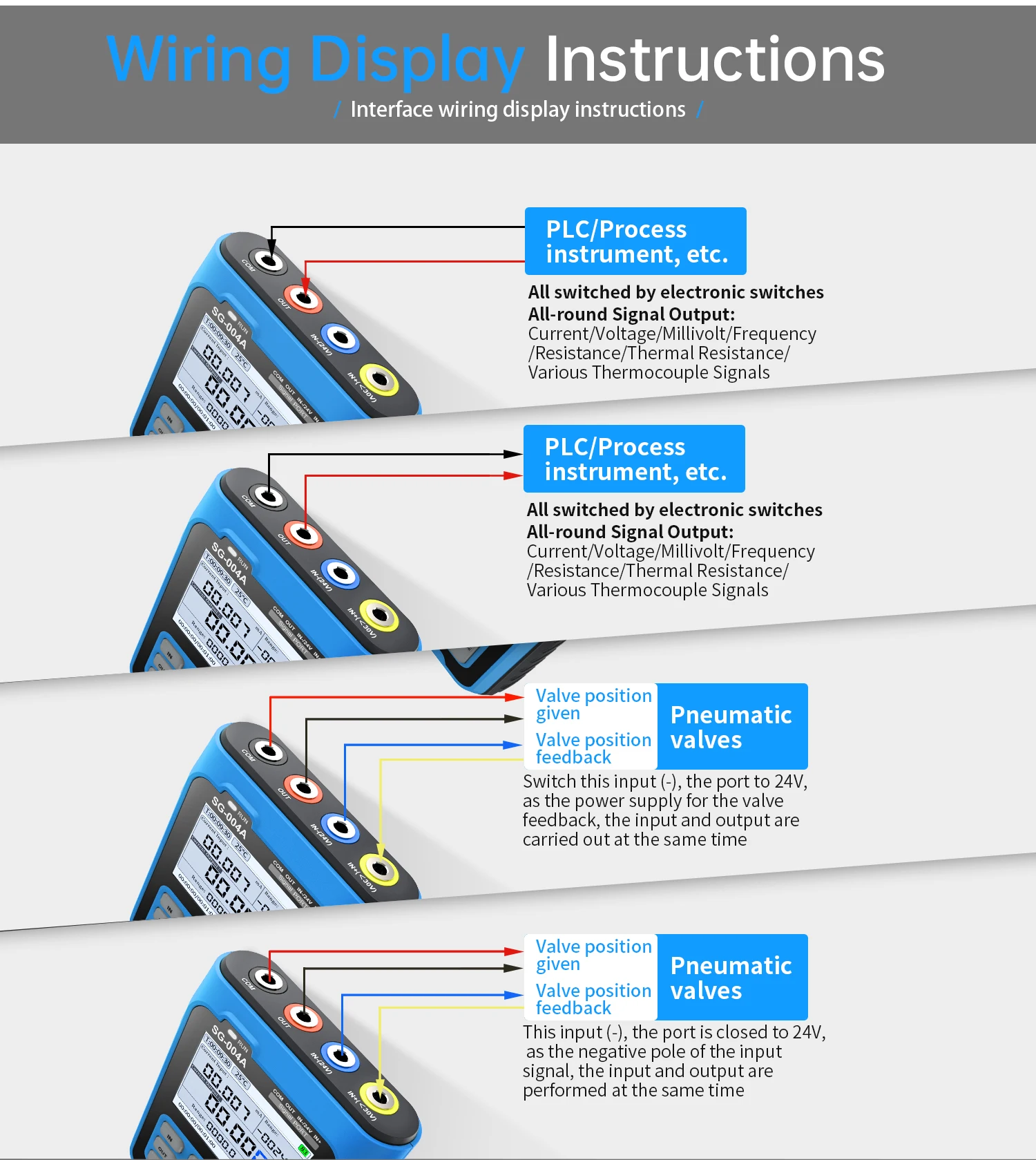

The SG-004 supports a variety of signal modes, including voltage, current, frequency, thermocouple, and resistance, for both input and output. It also accommodates an independent 24V power supply, making it adaptable to different working environments. The device’s capabilities extend to historical data recording, MODBUS communication, and various extended functions, enhancing its utility in complex industrial applications.

In summary, the SG-004 Handheld Multi-functional Signal Generator and Process Calibrator is a robust, portable, and highly functional tool tailored for professionals in the industrial control industry. Its combination of advanced features, ease of use, and durability makes it a valuable addition to any technician’s toolkit.

Sdc830e278a1b466f9e3e654a2e13c2f1cS3ddf9acd6bc947348189f3ec6146afb3eS0e81f9fa7ccc4c929e29703cfadeecb3lS2c81d0f06fdc419f9cd623e2a824374e9S8a56790e198c421fbe3bd1a02e31db43fS3aecb56c8f5f4d59b4a53fc636ab1529SS590c7c06bf5a46c9b47fc82fc73f68fbiSaae45e624e8f4668a92ac6f766ae2c13ISa450223798784652aac3218b686cf5bdFSae3b041e96ea4f11a357f8c21389deaeYSe21d8b8b8ac34761a2a5997952ad1601NS05258f7600014f68a4a94802016241400

Additional information

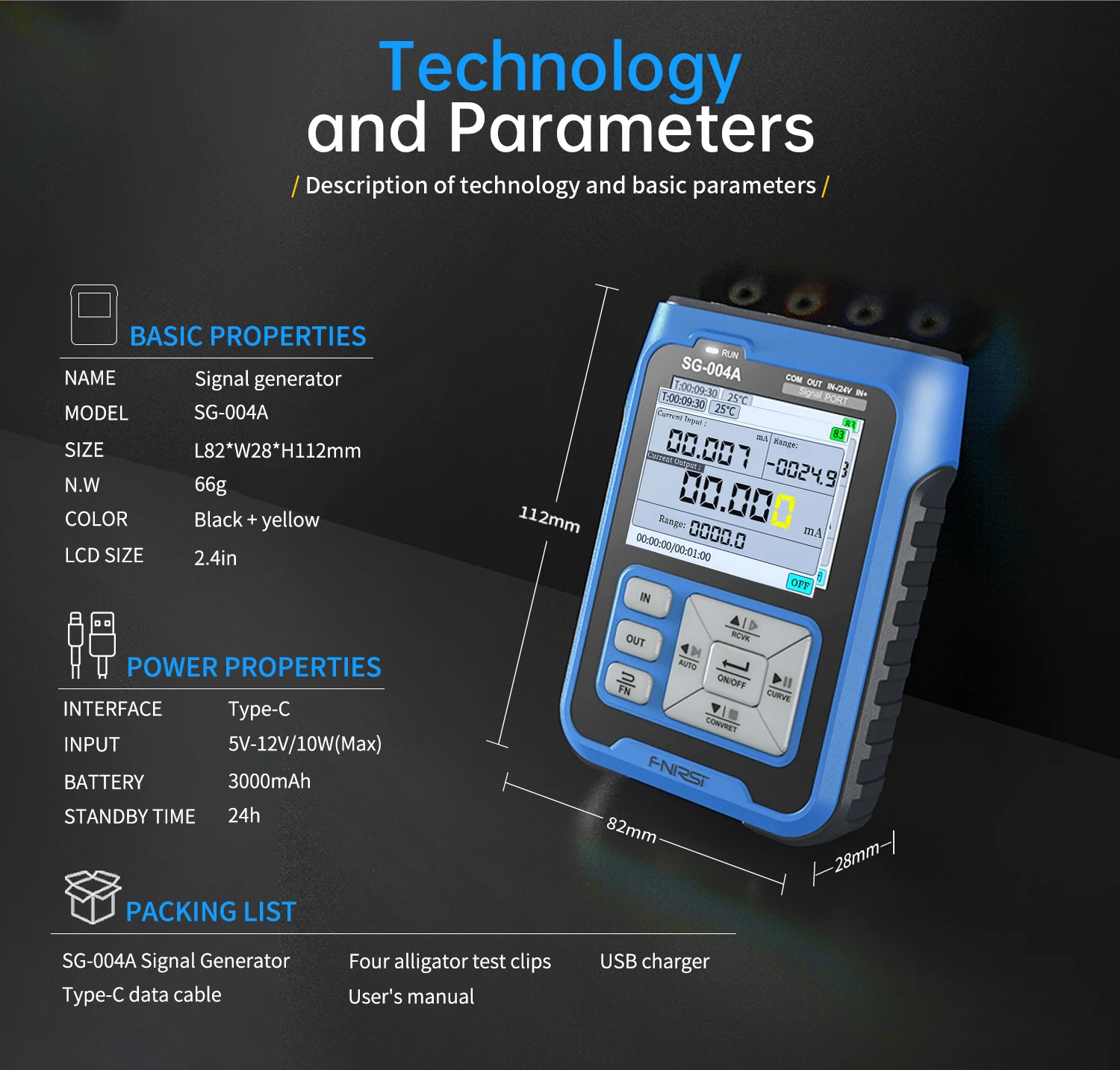

Weight 0.600 kg
Dimensions 10 × 10 × 10 cm
Brand Name

FNIRSI
Battery Included

Yes
Origin

Mainland China
High-concerned chemical

None
DIY Supplies

Electrical
Display Type

Analog Only
Certification

CE
Model Number

SG-003 SG-004
Operating Temperature

0-40℃
Passive current output range

0-24 mA
Voltage output range

0-24 V
Active current output maximum load

750Ω
Voltage input measurement range

0-30 V
PWM output (frequency) Range

0-9999Hz

41 reviews for SG-004 Handheld Multi-functional Signal Generator and Process Calibrator

  1. Harley E. (verified owner) –

    Thank you FNIRSI for the very very fast delivery. Good job.

  2. Retta D. (verified owner) –

    Product as described.

  3. Josiah H. (verified owner) –

    FNIRSI SG-004A Multi-functional Signal Generator

  4. Luther E. (verified owner) –

    It arrived in Japan in one week. I already had one but this is an additional purchase. There is nothing with this level of performance in Japan so it’s very helpful. The LCD is easy to read and the buttons are easy to press making it very useful on-site. I plan to purchase again.

  5. Enola C. (verified owner) –

    That’s really good.

  6. Madeline K. (verified owner) –

    It arrived in Japan in one week. I already had one but this is an additional purchase. There is nothing with this level of performance in Japan so it’s very helpful. The LCD is easy to read and the buttons are easy to press making it very useful on-site. I plan to purchase again.

  7. Sadye C. (verified owner) –

    The device is simply above my expectations. I compared the generator with a multimeter and I wasn’t expecting crazy accuracy but having the possibility to calibrate the outputs is just amazing.

  8. Ava B. (verified owner) –

    Item came in less than a week after ordering. All items are accounted for and working.

  9. King J. (verified owner) –

    Very happy with my purchase!

  10. Katelin A. (verified owner) –

    Item as advertised fast delivery.

  11. Piper M. (verified owner) –

    Good team. Works excellent. Thanks.

  12. Zackery J. (verified owner) –

    A very interesting device. Can generate and measure current up to 20mA voltage up to 25V resistance up to 3330 ohm and convert between each other. Reads only positive values. Slightly complex to operate but with frequent use you can use it well.

  13. Dayna F. (verified owner) –

    Received the product on time and working correctly. Very good quality and reliability. Seller super recommended.

  14. Michaela R. (verified owner) –

    When I bought the device the battery was dead. I removed the battery and charged it separately with a TP4056 module for up to 4 hours and after that it was fixed.

  15. Harmon S. (verified owner) –

    Received as per the description and in proper packing. Received package before the mentioned time.

  16. Santino W. (verified owner) –

    I have been trusting the company for several years now. Well done.

  17. Levi B. (verified owner) –

    Excellent equipment works perfectly has a very robust construction and a beautiful design. Exceeded my expectations.

  18. Bailey M. (verified owner) –

    Well packed. Good quality.

  19. Zion W. (verified owner) –

    Very good product. There is nothing in Brazil that delivers the same performance for the price. For those who work with automation it helps a lot.

  20. Wava S. (verified owner) –

    Fast delivery and excellent quality. Measured and verified with my Fluke DMM and found it spot on at mA sourcing!

  21. August U. (verified owner) –

    What a good team.

  22. Elisha C. (verified owner) –

    Excellent product very practical and compact very good presentation. Checked with a Fluke 754 and measurement error is more than acceptable. Highly recommended for field use. The product arrived much earlier than scheduled.

  23. Candelario E. (verified owner) –

    FNIRSI SG-004A Multi-functional Signal Generator

  24. Kirk S. (verified owner) –

    They must send with a clearer user manual with more examples of use more application photos and laboratory test graphs. The device has too many buttons and functions that cause confusion and too many values to define. Default settings should be simpler. To test electronic equipment you need to support tolerances not define every amplitude frequency and pulse parameter in detail. Needs to improve quality to match brands like Siglent Hantek or Tektronix.

  25. Betsy K. (verified owner) –

    Seems to be very accurate. I tested it with a meter for voltages and mA and it is spot on. I also checked the PWM function with a scope and it looks pretty good. I’m very satisfied with the purchase.

  26. Darrel L. (verified owner) –

    As described it fits in my pocket and the battery although arrived without any charge works fine after charging. The probes are robust and soft. The USB-C cable is a little rigid but all in all it’s a nice piece for the job.

  27. Jack C.E.J.C.J.@.F.f.F.P. (verified owner) –

    Thank you to the team for going out of their way to make this shipment happen. Couldn’t thank you guys enough.

  28. Hilda A. (verified owner) –

    Nice product quality and very fast delivery speed. Great seller.

  29. Ardella H. (verified owner) –

    Great product recommend! Very satisfied. Thank you very much all the best!

  30. Jaleel M. (verified owner) –

    Excellent working tool for control. Arrived early. Excellent seller.

  31. ANGERAND P. (verified owner) –

    Very nice product. I also own the SG-002A. Competitive pricing and shipping including prepaid custom fees. Fast delivery to France.

  32. Dereck K. (verified owner) –

    Works great. What you need. The menu is somewhat complex. Packed very well.

  33. Nafees N.B. (verified owner) –

    FNIRSI SG-004A Multi-functional Signal Generator

  34. Dean W. (verified owner) –

    Products are well made and easy to use and accurate. Meter displays are not so visible in bright sunlight so really only good for indoor use. Another negative is that only some come with travel cases for the meter and leads so I have to find cases for the ones that didn’t come with them which is disappointing.

  35. Pascal S. (verified owner) –

    FNIRSI SG-004A Multi-functional Signal Generator

  36. Bruno B. (verified owner) –

    Very good.

  37. Newton S.R. (verified owner) –

    I’ve been using this helpful signal generator for about 3 years with no problems and it has reduced my problem solving time during commissioning.

  38. Vincent B. (verified owner) –

    FNIRSI SG-004A Multi-functional Signal Generator

  39. Dadiany I.H. (verified owner) –

    FNIRSI SG-004A Multi-functional Signal Generator

  40. Johnry B. (verified owner) –

    FNIRSI SG-004A Multi-functional Signal Generator

  41. patrick o. (verified owner) –

    The hardware is functional and the functions are complete but it is not very intuitive to use.
