FNIRSI DSO510 Mini Handheld Digital 2 IN 1 Oscilloscope and DDS Signal Generator
Original price was: £55.00.£38.00Current price is: £38.00. & Free Shipping
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Mini Handheld Digital
The FNIRSI DSO510 is a sophisticated and compact oscilloscope designed to meet the demands of professionals engaged in complex signal testing, research, and development. This versatile instrument is particularly well-suited for those involved in intricate repairs or educational settings that require precise and reliable measurements.
Advanced Performance

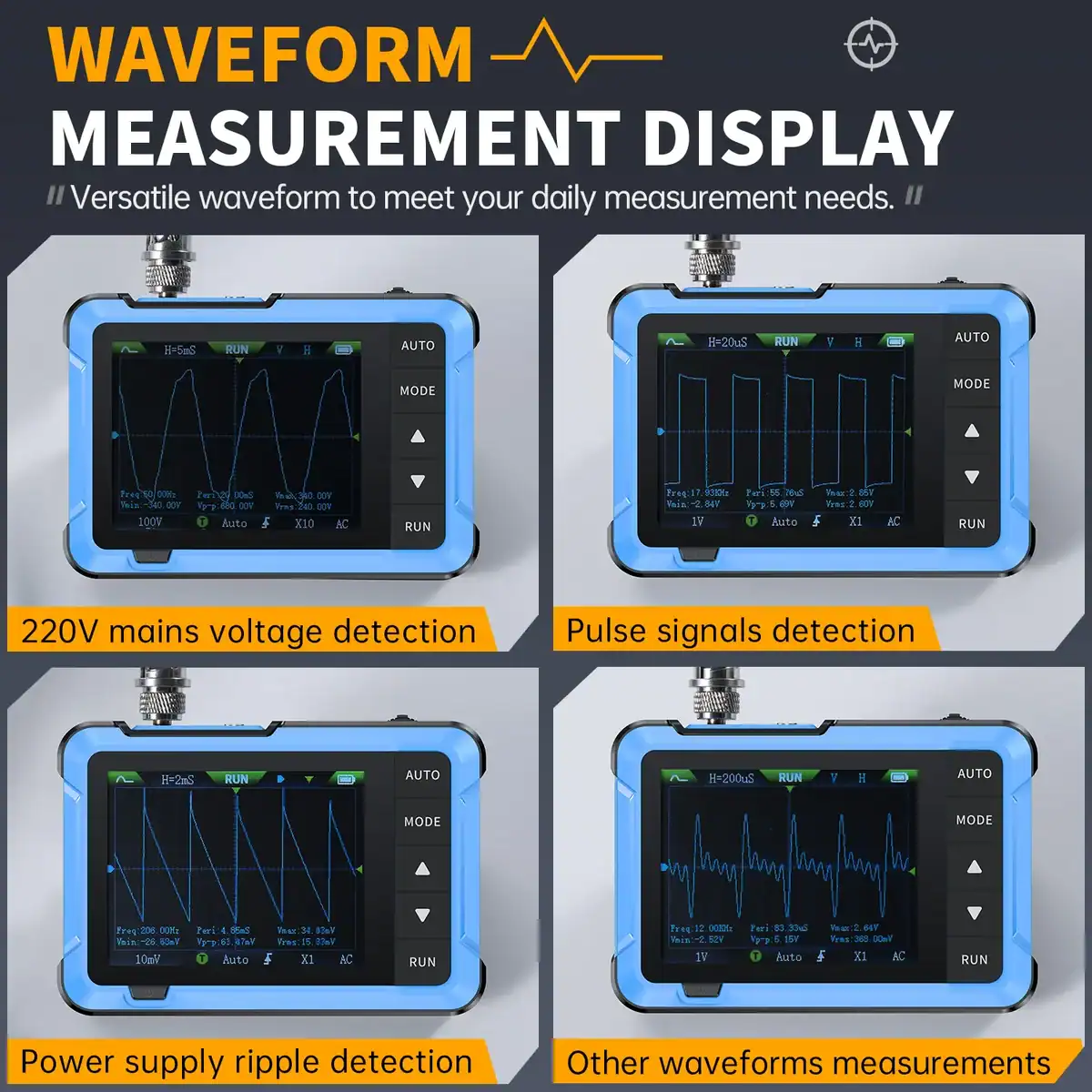

With a real-time sampling rate of 48MS/s and a bandwidth of 10MHz, the DSO510 is capable of accurately capturing and analysing both periodic analog signals and non-periodic digital signals. This makes it an invaluable tool for engineers and technicians who require detailed insights into their signal behaviour.
Comprehensive Features
It offers a range of trigger modes, including Single, Normal, and Auto, allowing users to tailor their measurements to specific requirements. Its voltage measurement range of ±400V ensures that it can handle a wide variety of applications, from low-voltage circuits to more demanding environments.

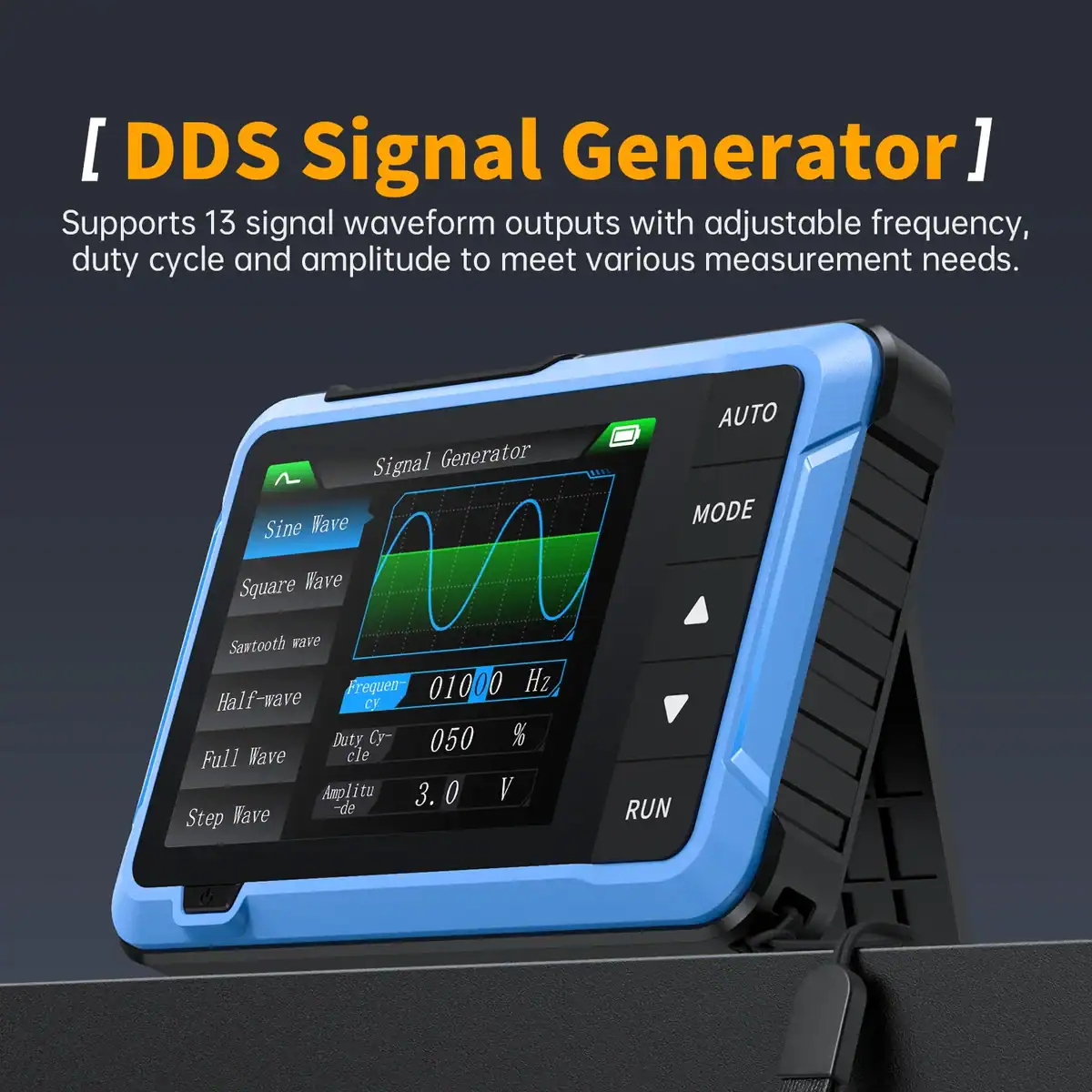

One of the standout features of the DSO510 is its integrated signal generator, which operates at 50KHz. This functionality enhances the oscilloscope’s versatility, enabling users to generate test signals for various applications.
User-Friendly Design

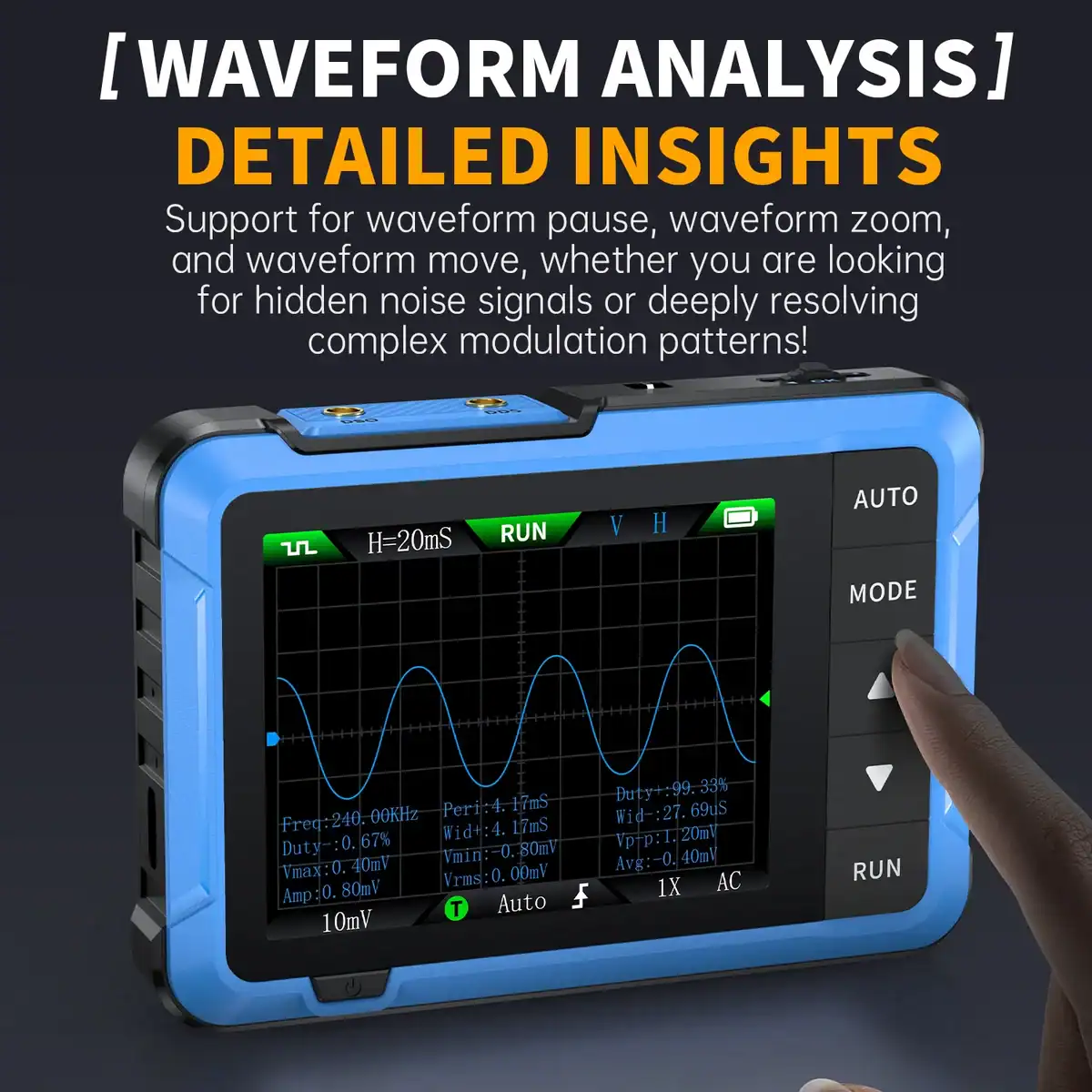

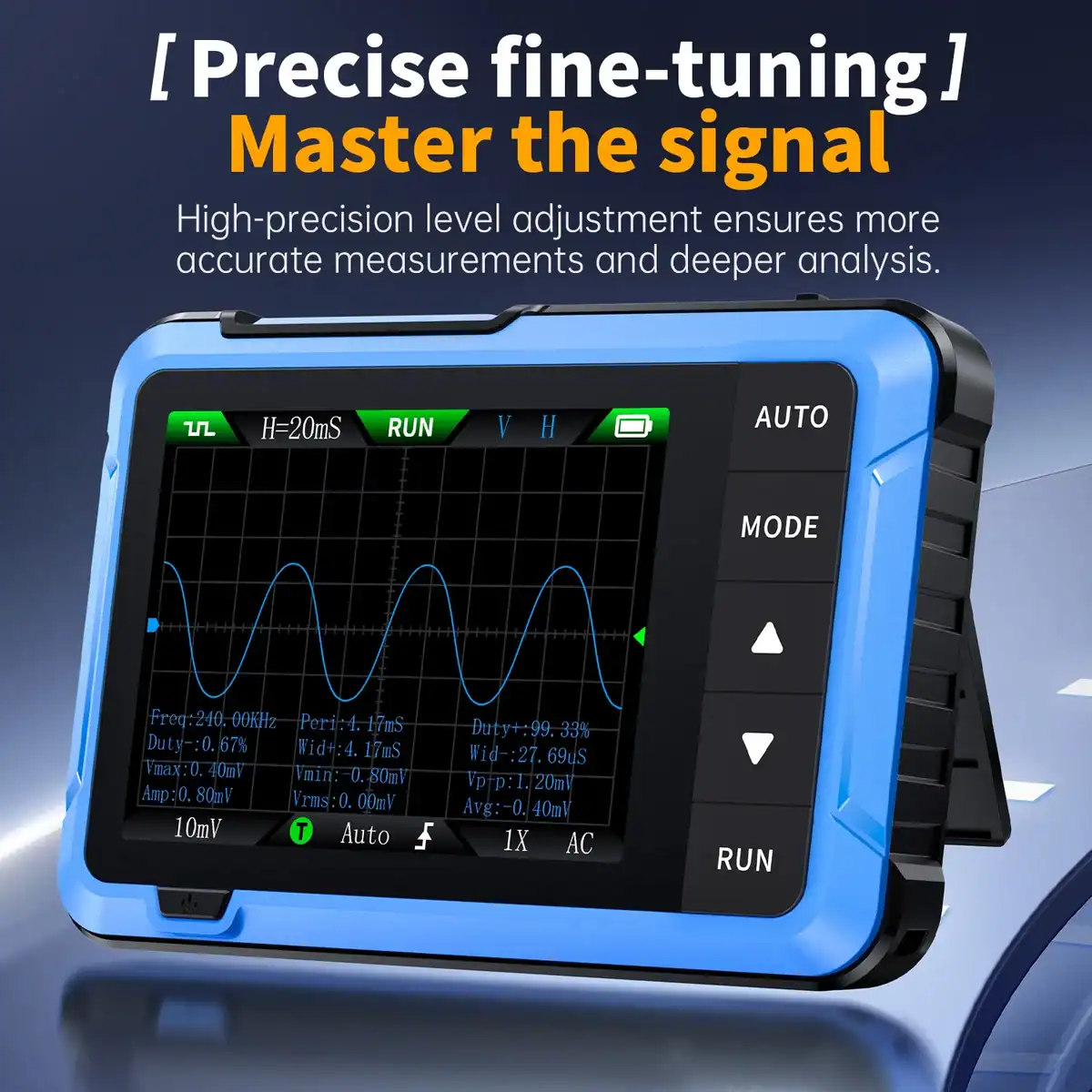

The oscilloscope is equipped with a 2.8-inch HD LCD screen featuring a resolution of 320×240, providing clear and detailed visualisation of waveforms. The One-Click AUTO mode simplifies operation by instantly displaying waveforms without the need for complex adjustments, making it accessible for users of all skill levels.
Portability and Battery Life
Designed for portability, the FNIRSI DSO510 is powered by a built-in 1000mAh lithium battery, which supports up to 4 hours of continuous use. This feature allows professionals to conduct measurements in various environments without the constraints of a power source.
Recommended Use
The FNIRSI DSO510 is an excellent choice for advanced repairs, development projects, and educational applications. Its combination of advanced performance, user-friendly features, and portability makes it a reliable companion for anyone requiring precise signal analysis in a compact form factor.
Additional information
| Weight | 0.350 kg |
|---|---|
| Dimensions | 17 × 11 × 9 cm |
| Brand Name | FNIRSI |
| FNIRSI Model | DSO510 |
| Battery Included | Yes |
| Origin | Mainland China |
| High-concerned chemical | None |
| DIY Supplies | Electrical |
| Digital Channels | 1 |

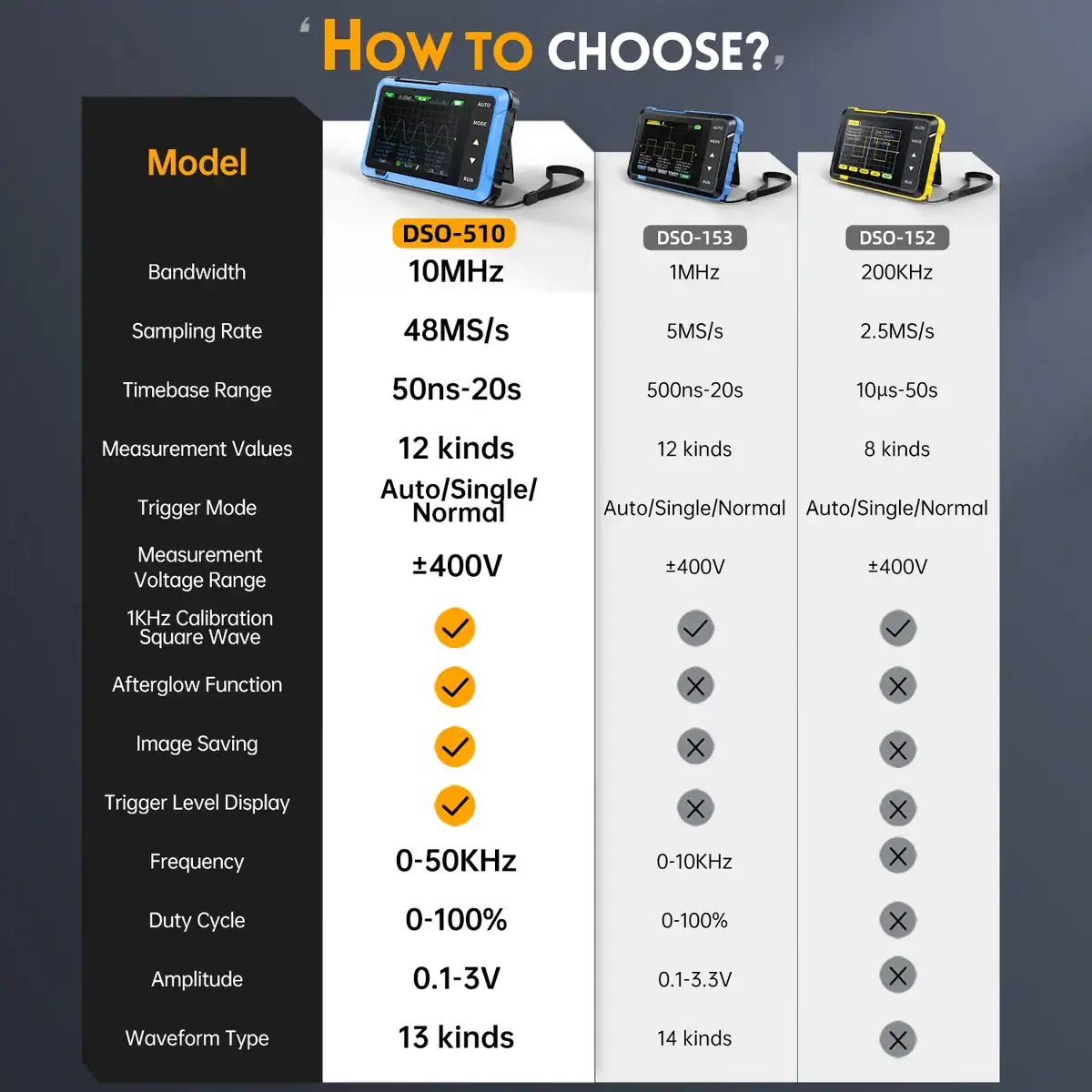

| Model Number | DSO510/DSO153/DSO152 |
| Display Resolution | 320*240 Pixels |
| Certification | CE |
| Real Time Sampling Rate | 48MSa/s |
| Display Size | None |
| Band Width | 10MHz |
| Vertical sensitivity | 10mV/Div-20V/Div(Progress according to the 1-2-5 way) |
| Time base range | 10μs/Div-50s/Div(Progress according to the 1-2-5 way) |
| Voltage range | 1X 400VPP 10X 800VPP |
| Trigger method | Auto/Normal/Single |
| Coupling method | AC/DC |
| Display | 2.8 inches/PPI:320*240 |
| USB charging | 5V/1A |
| Lithium battery capacity | 1000mAh |
| Square wave calibration | Frequency: 1K |
| Size | 99mmx68.3mmx19.5mm |
| Weight | 104g |
| Duty cycle | 50% |
24 reviews for FNIRSI DSO510 Mini Handheld Digital 2 IN 1 Oscilloscope and DDS Signal Generator
Related products
-
Sale!
FNIRSI DST-210 3 in 1 Digital Multimeter Oscilloscope Signal Generator
Original price was: £99.00.£64.90Current price is: £64.90. -
Sale!
FNIRSI DPOX180H Handheld Digital Oscilloscope Dual Channel 180MHz
Original price was: £175.86.£119.00Current price is: £119.00. -
Sale!
FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel 100MHz* 2 Analog Bandwidth
Original price was: £190.00.£145.00Current price is: £145.00. -
Sale!
FNIRSI HRM-10 Battery Tester Voltage and Resistance DC 0 ~ ± 100V Resistance 0~200Ω
Original price was: £65.00.£44.50Current price is: £44.50.
MADIS M. (verified owner) –
Product is very good!
izzy B. (verified owner) –
Good job.
Stephen Y. (verified owner) –
It looks like a very convenient hand-held instrument.
Christopher (verified owner) –
It takes a little getting used to but I like it so far.
Páraic Ó.F. (verified owner) –
Does everything it claims to pretty well.
Teemu M. (verified owner) –
Overall good. The firmware needs to be fixed – the latest one lost the oscilloscope line and I needed to use older firmware which lacks the ability to upload wave screenshots. But anyway a good device for analyzing.
Phil F. (verified owner) –
Even if you have a normal bench top scope odds are you are not taking it around with you. This is a great little tool for the price and really is quite impressive for what it does. Spend the extra money and get the higher end DSO 500 models. These fit right along with my NanoVNA and other small tools for a portable kit.
Toni A.P. (verified owner) –
Very good device.
Robert B. (verified owner) –
I’m prototyping power electronics and this little guy has plenty of resolution to measure my kHz range signals. Auto ranging works very well.
Diego R.F. (verified owner) –
FNIRSI DSO-510 10MHz 48MS/s Mini Handheld Digital Oscilloscope Signal Generator
Derek K. (verified owner) –
It is handy for simple troubleshooting.
Algis A. (verified owner) –
FNIRSI DSO-510 10MHz 48MS/s Mini Handheld Digital Oscilloscope Signal Generator
Andrea R. (verified owner) –
FNIRSI DSO-510 10MHz 48MS/s Mini Handheld Digital Oscilloscope Signal Generator
Angel A. (verified owner) –
FNIRSI DSO-510 10MHz 48MS/s Mini Handheld Digital Oscilloscope Signal Generator
Aliaksei K. (verified owner) –
FNIRSI DSO-510 10MHz 48MS/s Mini Handheld Digital Oscilloscope Signal Generator
Gerard v.W. (verified owner) –
This is a really nice service oscilloscope with built in oscillator! Great price and excellent quality.
Jibin T. (verified owner) –
FNIRSI DSO-510 10MHz 48MS/s Mini Handheld Digital Oscilloscope Signal Generator
Mauricio49 (verified owner) –
I installed the latest firmware 2.0.5 and it is not working. The oscilloscope is not functioning it is very difficult to operate and makes mistakes in voltage values.
Sander J. (verified owner) –
Good product and also great service. Nicely packaged and nice quality. After upgrading the firmware I found a bug and reported it. Within a decent time there was a new firmware version that fixed the issue. It’s hard to find a product with a good price and service like that. I would recommend.
Tayfun (verified owner) –
After updating to DSO510 firmware 2.0.5 calibration failed and the device became unusable. I had to downgrade the firmware to V1.0.3. I think there’s a bug in the latest version. Could you please check it?
Attila A.S. (verified owner) –
FNIRSI DSO-510 10MHz 48MS/s Mini Handheld Digital Oscilloscope Signal Generator
H (verified owner) –
Economical equipment that operates satisfactorily.
Anonymous (verified owner) –
Good and fast seller!! I love my new oscilloscope.
C. (verified owner) –
With the latest firmware 2.0.5 when you press autocalibration every now and then it goes into a loop and doesn’t turn off anymore.
