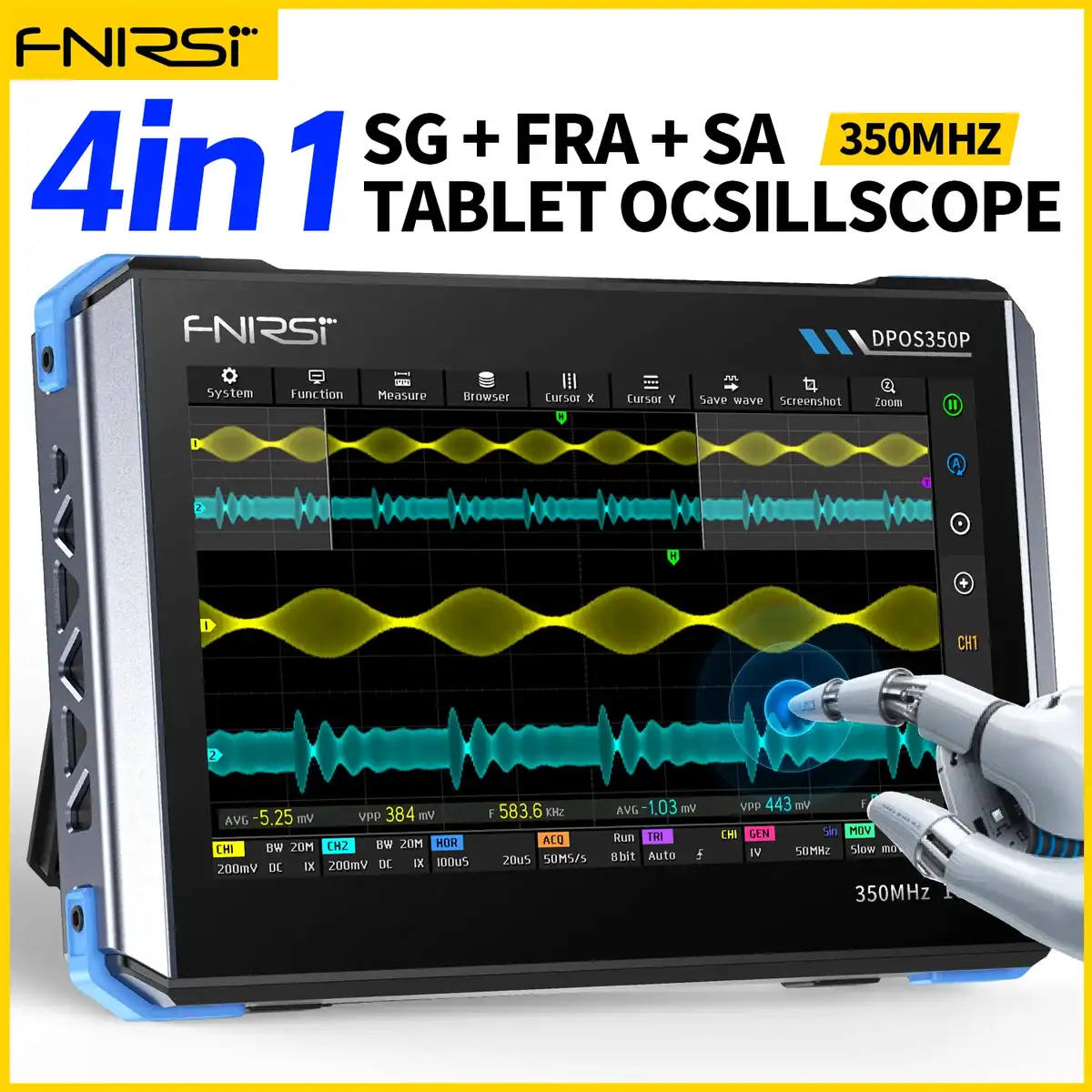

FNIRSI DPOS350P 4 in 1 Tablet Oscilloscope Multimeter
Original price was: £270.00.£223.00Current price is: £223.00. & Free Shipping
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Tablet Oscilloscope 2 Channel Signal Generator Spectrum Analyzer Frequency Response Analyzer
The FNIRSI DPOS350P is a sophisticated 4-in-1 instrument designed for professionals in various fields, including laboratories, production lines, and maintenance sites. This versatile device integrates a 350MHz dual-channel digital phosphor oscilloscope, a 50MHz full-function signal generator, a 200K~350MHz spectrum analyzer, and a 50MHz frequency response analyzer, making it an essential tool for comprehensive signal testing and analysis.
#### High-Performance Features
At the core of the DPOS350P is its impressive performance specifications. It boasts a real-time sampling rate of 1GSa/s and an analog bandwidth of 350MHz in single-channel mode. This high-performance capability allows for the accurate capture and display of a wide range of signals, particularly beneficial for complex signal analysis and low-probability anomaly detection. The ultra-high waveform refresh rate of 50,000 waveforms per second ensures that even the most fleeting signal changes are captured with clarity.
#### User-Friendly Interface
The DPOS350P features a 7-inch high-resolution IPS touchscreen with a resolution of 1024×600 pixels, providing a clear and detailed waveform display. The touch operation enhances user interaction, allowing for intuitive navigation through its various functions. The device supports both grayscale and colour temperature mode switching, making it adaptable to different testing environments. Additionally, intelligent triggering and multiple measurement modes contribute to its precision and reliability.
#### Comprehensive Signal Generation and Analysis
Equipped with a built-in 50MHz signal generator, the DPOS350P supports 14 standard waveforms along with custom waveform functionality. This versatility is complemented by its spectrum analyzer, which covers a frequency range of 200K~350MHz, making it ideal for electromagnetic interference (EMI), radio frequency (RF), and high-frequency signal testing. The frequency response analyzer further enhances its capabilities, allowing for detailed analysis of system responses across a wide frequency range.
#### Safety and Convenience
Safety is paramount in the design of the DPOS350P, featuring high-voltage protection up to 400V. This ensures that users can operate the device with confidence in various testing scenarios. The device also incorporates QC18W fast charging technology, enabling it to be fully charged in just two hours, thus ensuring long-term stable operation.
For data management, the DPOS350P supports the storage of up to 500 waveform data sets and 90 images, with USB data export functionality for easy analysis and report generation. This feature is particularly useful for professionals who require efficient data handling and documentation.
#### Conclusion
The FNIRSI DPOS350P is a high-performance, feature-rich all-in-one oscilloscope that meets the diverse needs of industrial and research applications. Its powerful integrated design, high sampling rate, and wide bandwidth make it an ideal choice for accurately analysing complex signals. Whether for laboratory research or quality control on the production line, the DPOS350P delivers reliable measurement performance, making it an indispensable tool for professionals in the field.
Additional information
| Weight | 1.500 kg |
|---|---|
| Dimensions | 20 × 10 × 10 cm |
| Brand Name | FNIRSI |
| FNIRSI Model | DPOS350P |
| Battery Included | Yes |
| Origin | Mainland China |
| High-concerned chemical | None |
| DIY Supplies | Electrical |
| Digital Channels | 2 |
| Model Number | DPOS350P |
| Record Length | 60Kpts |
| IS Battery Demountable | Yes |
| Display Resolution | 1024*600 Pixels |
| Certification | CE, weee |
| Real Time Sampling Rate | 1GSa/S |
| Display Size | 7 Inches & Above |
| Max Waveform Capture Rate | 50, 000wfm/s |
| Band Width | 350Mhz |
| Hardware bandwidth limit | 150M / 20M |
| Rise time | 1ns |

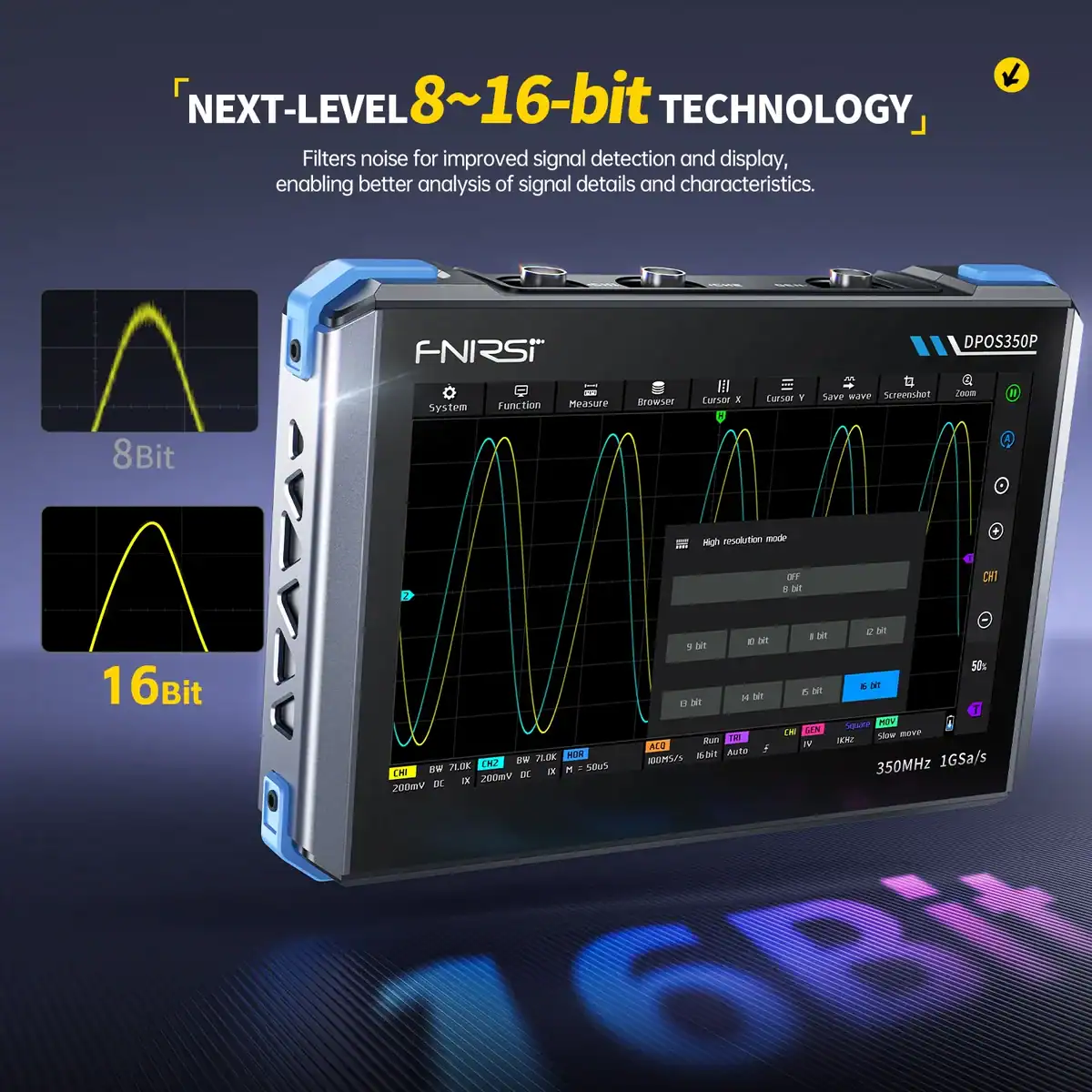

| High resolution mode | 8bit ~ 16bit |
| Overvoltage protection | ±400V |
| Parameter measurements | 12 types |
| Time base range | 5ns ~ 50s |
| Roll time base | 50ms ~ 50s |
| Vertical sensitivity | 2mV ~ 20V(1X) |
| Vertical range | 16mV ~ 160V(1X) |
| DC accuracy | ±2% |
| Time accuracy | ±0.01% |
| Input coupling | DC / AC |
| Probe attenuation | 1X / 10X / 100X |
| Cursor measurement | time, period, frequency, level, voltage |
| Trigger detection | digital trigger |
| Trigger mode | Auto / Single / Normal |
| Trigger edge | rising edge / falling edge |
| Trigger suppression | L1 ~ L3 |
| Trigger level | manual / auto 10% ~ 90% |
| FFT display | support |

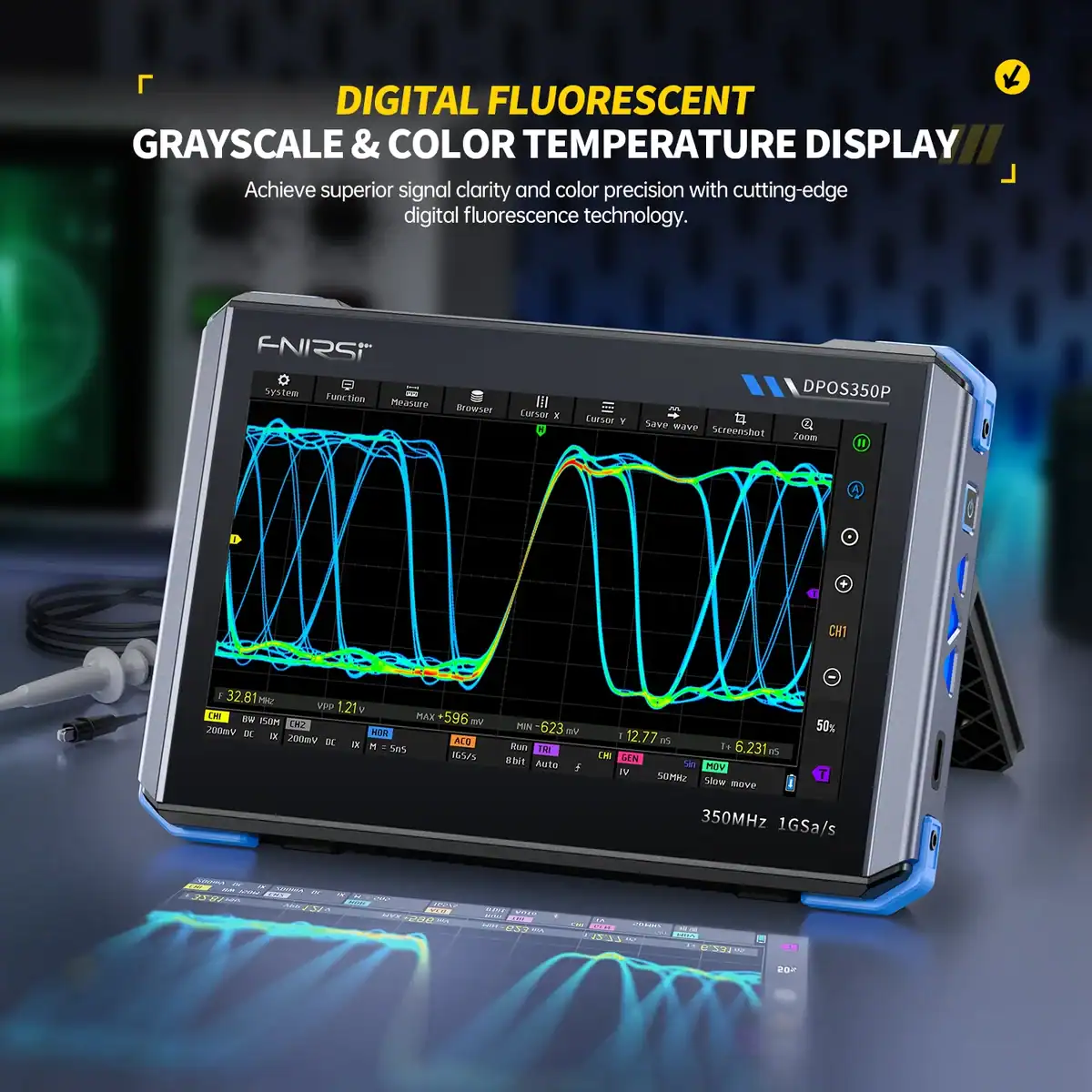

| Digital fluorescence | YES |
| Color temperature display | support |
| X-Y mode | support |
| ZOOM time base | support |
| One-key automatic adjustment | support |
| Screenshot storage | 90 pictures |
| Waveform storage | 500 groups |
| Data browser | support |
| Waveform types | 14 types+captured waveform |
| Frequency | 0 ~ 50MHz(sine wave only, other waveforms up to 10M/5M/3M) |
| Amplitude | 0 ~ 5VPP |
| Offset | -2.5V ~ +2.5V |

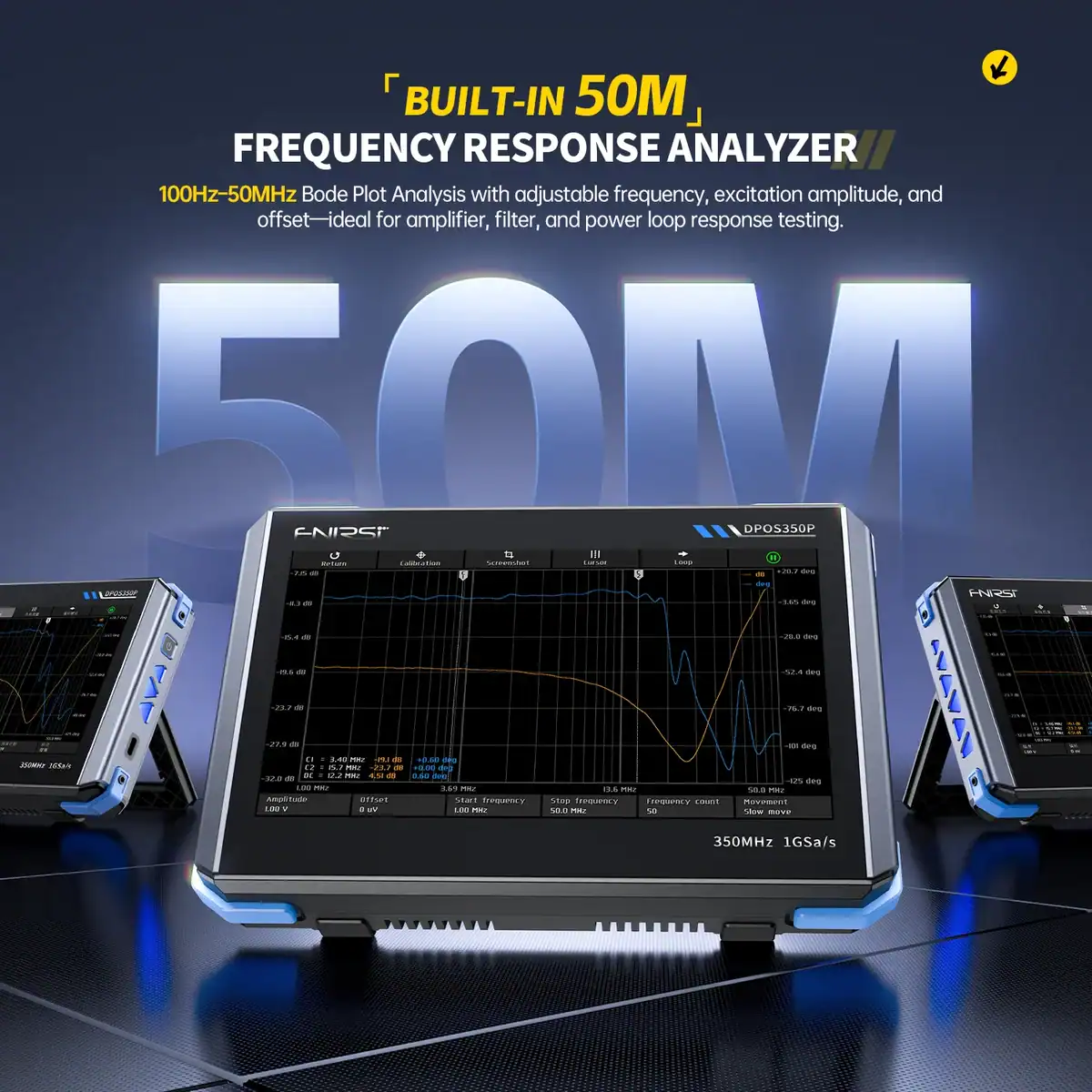

| Excitation signal frequency | 100Hz ~ 50MHz |
| Conversion method | FFT |
| FFT length | 4K ~ 32K |

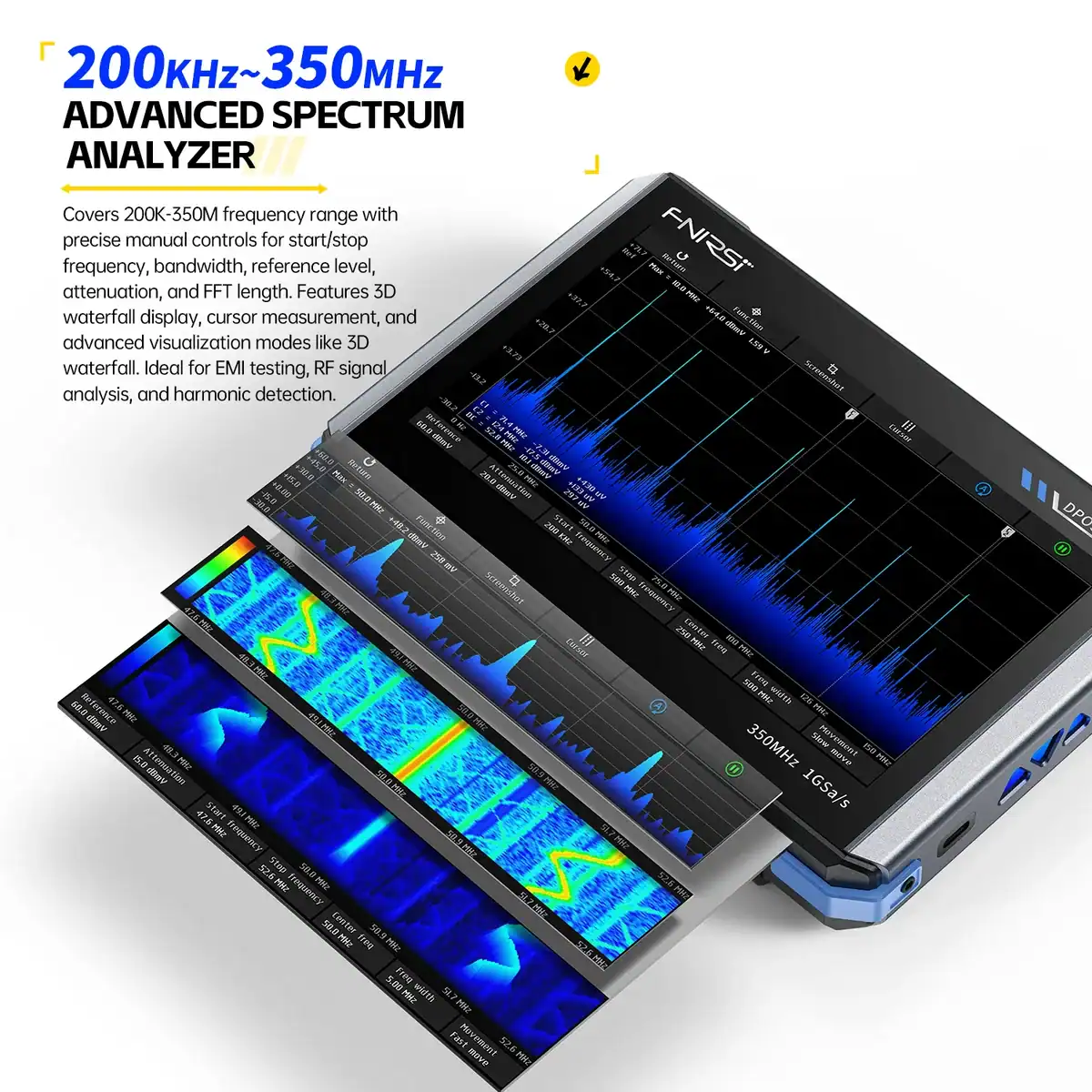

| Frequency range | 200KHz ~ 350MHz |
| Level range | -60dBmV ~ +260dBmV |
| 3D waterfall chart | support |
| Charging | QC18W – 12V/1.5A |
| Battery | 3.7V, 8000mAh lithium battery |

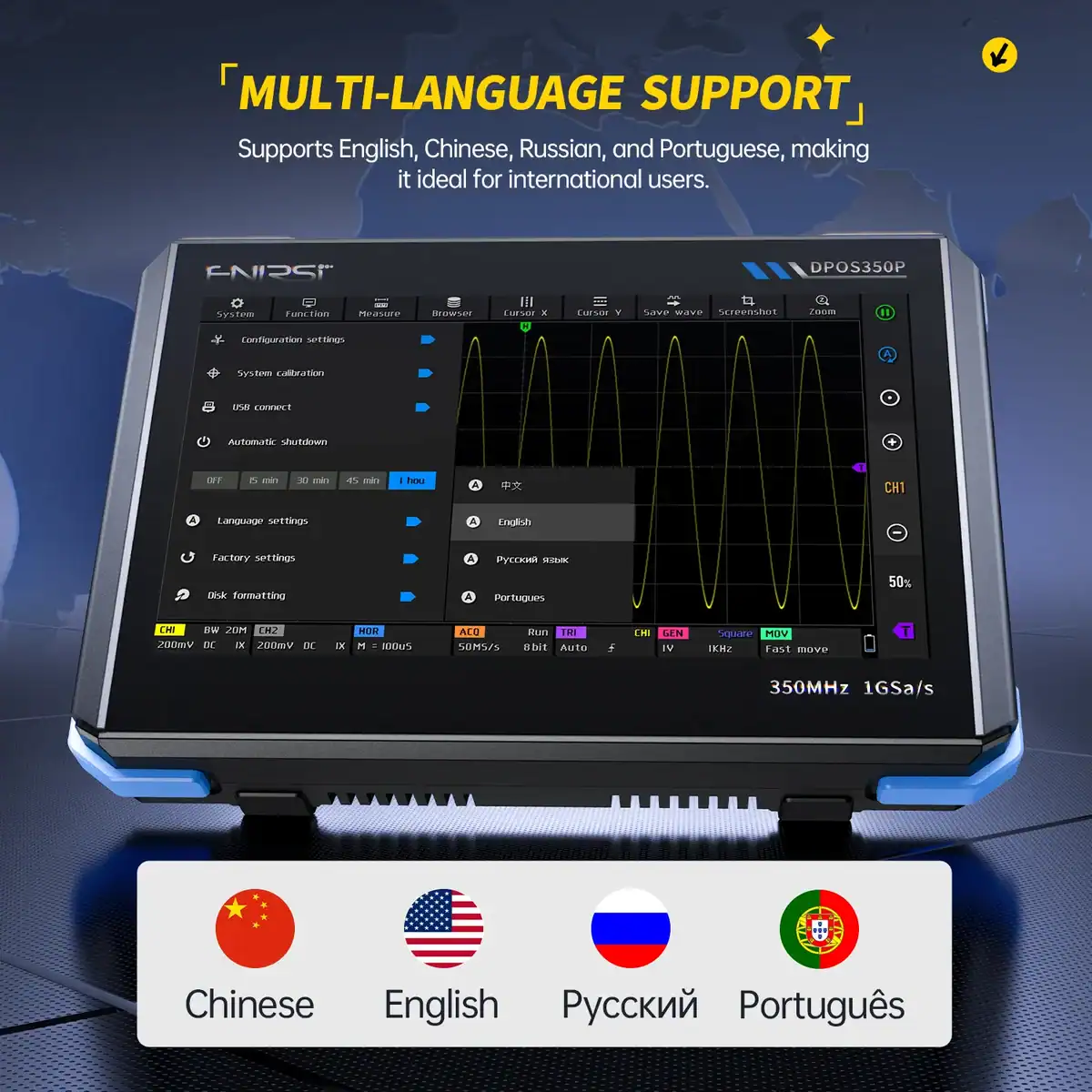

| Languages | Chinese / English / Russian / Portuguese |
| Automatic shutdown | 15 minutes ~ 1 hour / off |
