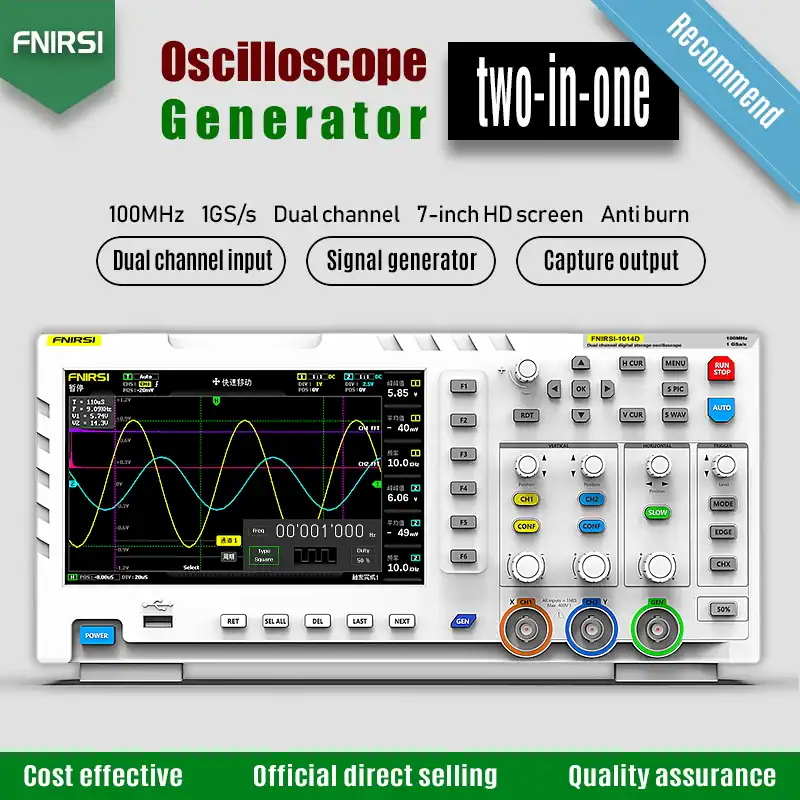

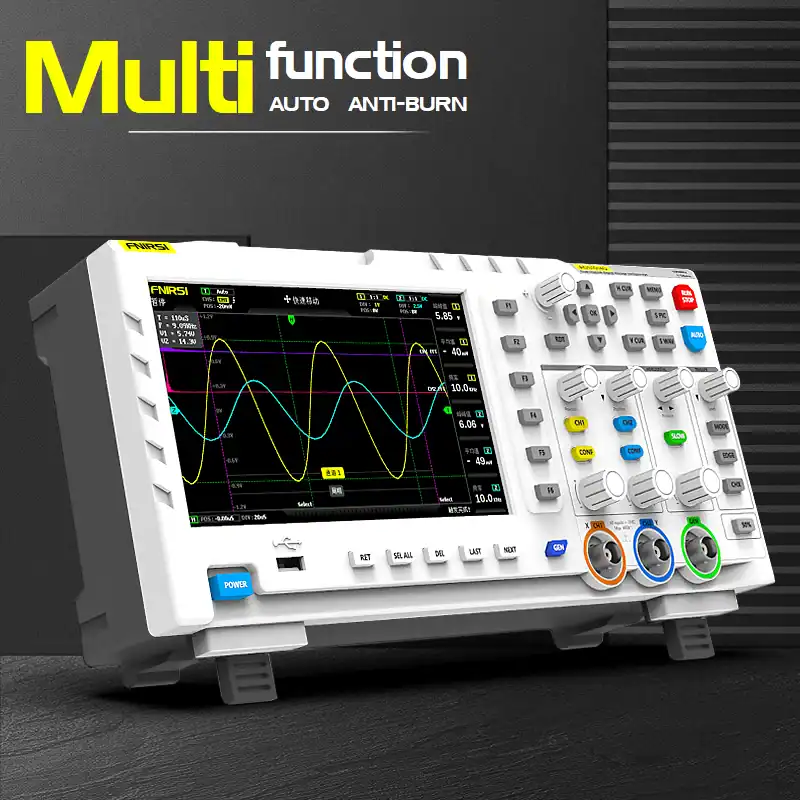

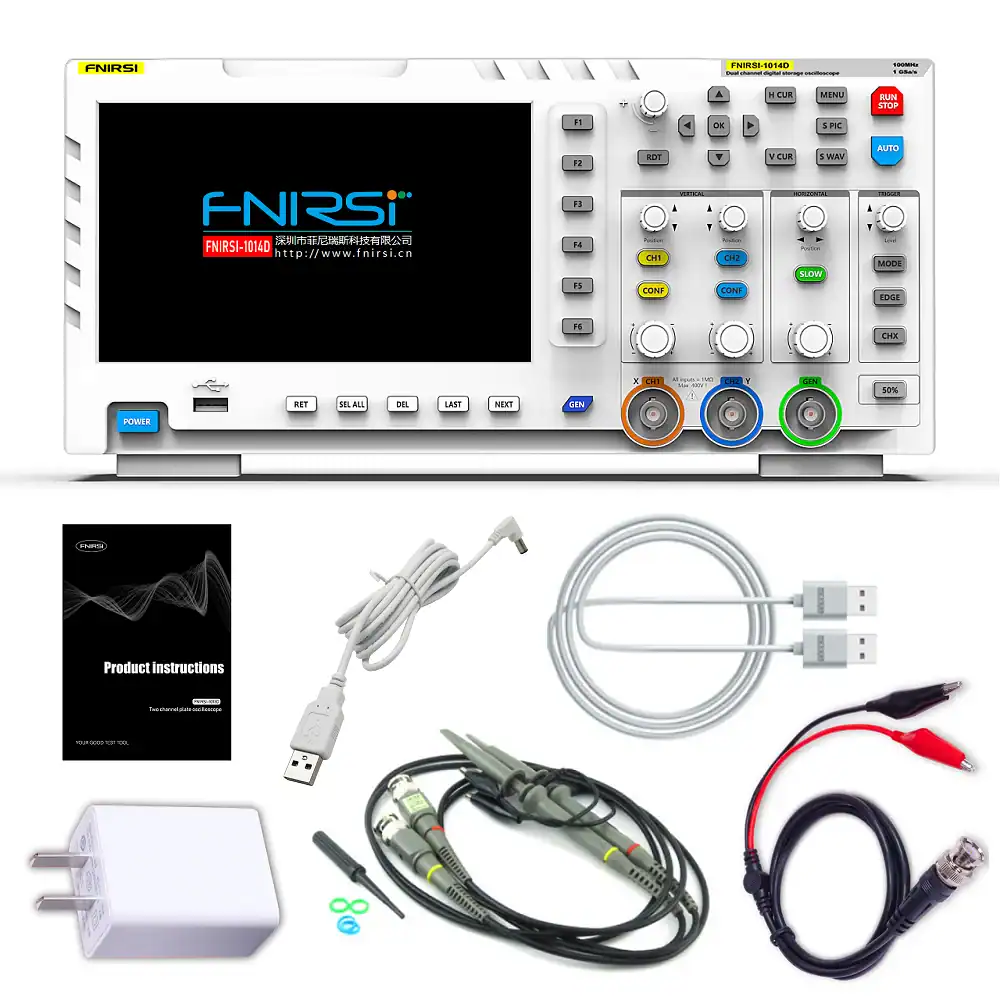

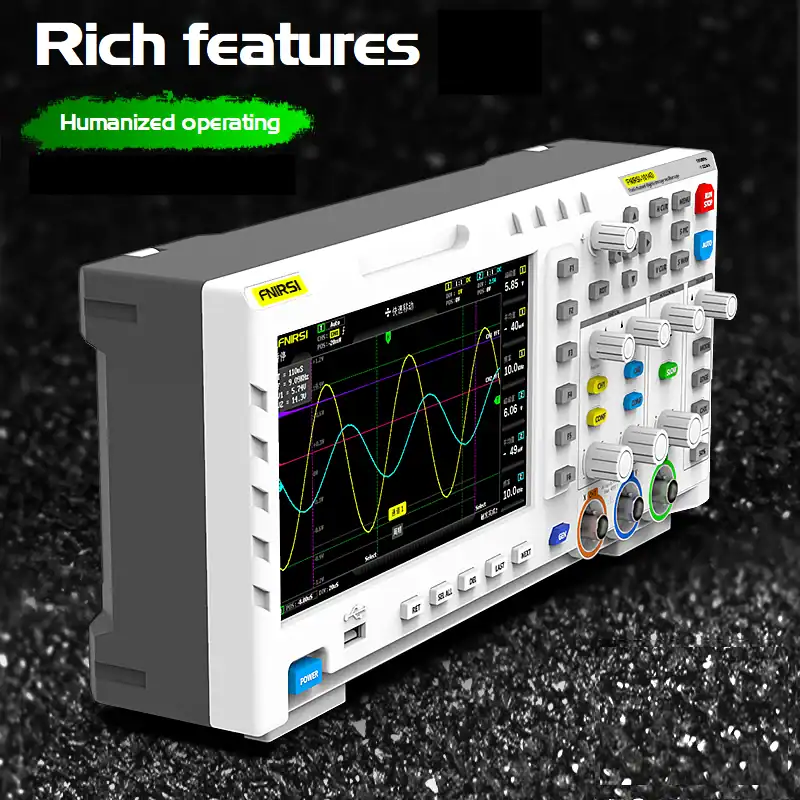

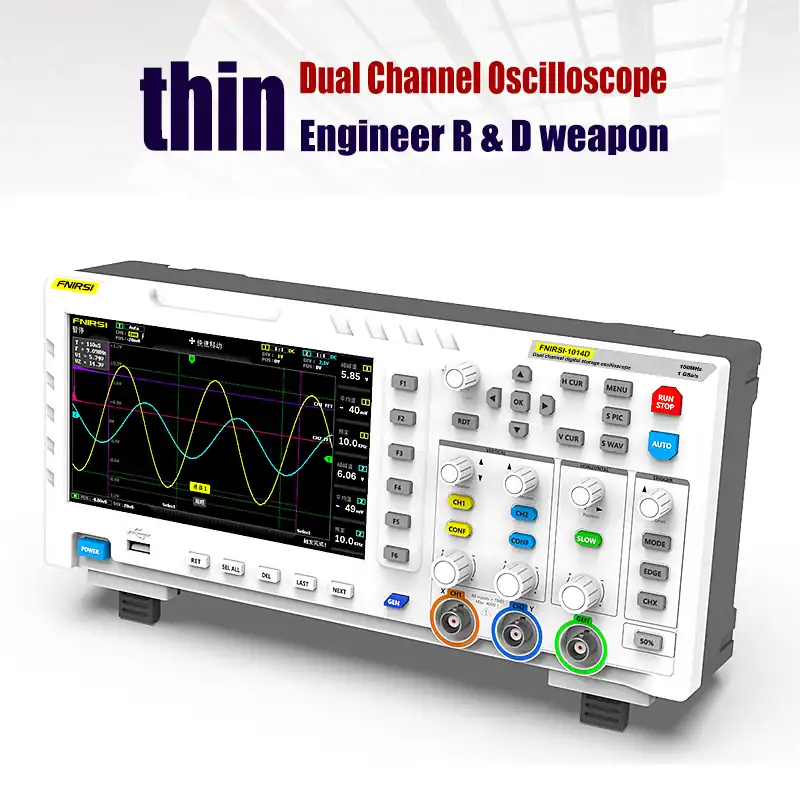

FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel
FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel 100MHz* 2 Analog Bandwidth 2
FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel 100MHz* 2 Analog Bandwidth 3
FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel 100MHz* 2 Analog Bandwidth 4
FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel 100MHz* 2 Analog Bandwidth 5
FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel 100MHz* 2 Analog Bandwidth 6

FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel 100MHz* 2 Analog Bandwidth

(102 customer reviews)

Original price was: £190.00.Current price is: £145.00. & Free Shipping

Free shipping on orders over $50!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: G0CU0489TR88BNG Categories: , , , , , , ,

Description

The FNIRSI 1014D Digital Oscilloscope is a versatile and powerful instrument designed for both the maintenance and research and development industries. This dual-channel oscillograph and signal generator combines advanced features with high practicality, making it a cost-effective solution for professionals seeking reliable performance.

#### Key Features and Specifications

The FNIRSI 1014D boasts a real-time sampling rate of 1GSa/s and an impressive analog bandwidth of 100MHz*2. This capability allows users to accurately capture and analyse both periodic analog signals and aperiodic digital signals. The oscilloscope is equipped with a complete set of triggering functions, including single time, normal, and automatic modes, ensuring flexibility in various testing scenarios.

One of the standout features of the FNIRSI 1014D is its built-in Direct Digital Synthesis (DDS) function signal generator. This innovative component supports 14 standard function signals and a customizable chopping signal, with a frequency step of just 1Hz. The chopping output, which operates at 2.5Vpp, allows users to intercept and output specific segments of complex signals measured by the oscilloscope. Additionally, the device can store up to 1000 customised cut-off signals, enhancing its utility for complex analyses.

#### Enhanced Usability and Display

The FNIRSI 1014D is designed with user convenience in mind. It features a large 7-inch high-definition LCD display with a resolution of 800 x 480, providing clear and vibrant visuals. The oscilloscope includes a one-button auto function that simplifies waveform display, eliminating the need for tedious adjustments. Furthermore, the cursor measurement function allows for easy manual reading of amplitude and frequency parameters without the need to interpret background scales.

The device also incorporates a powerful waveform image manager, enabling users to browse, view, and manage stored waveforms efficiently. With a built-in storage capacity of 1GB, the FNIRSI 1014D can save up to 1000 screen captures and 1000 sets of waveform data, streamlining the process of data management and analysis.

#### Advanced Analysis Capabilities

For those requiring in-depth analysis, the FNIRSI 1014D offers advanced features such as Lissajous figures graphic display and Fast Fourier Transform (FFT) viewing functions. These capabilities allow users to compare and assess the amplitude, frequency, and phase of two signal groups, as well as estimate the harmonic components of signals. The oscilloscope’s intelligent decoding algorithm and anti-burn function ensure longevity and reliability, with the device capable of withstanding up to 400V continuous voltage.

#### Connectivity and Portability

Equipped with a USB interface, the FNIRSI 1014D can easily connect to a computer for seamless sharing of screen captures and waveform data, facilitating secondary analysis. The oscilloscope is also designed for portability, with a compact form factor and lightweight construction, making it suitable for both laboratory and field use.

In summary, the FNIRSI 1014D Digital Oscilloscope is a robust and feature-rich instrument that meets the demands of professionals in various fields. Its combination of advanced functionality, user-friendly design, and high-performance specifications makes it an essential tool for anyone involved in electronic testing and analysis.

H34e454c5a45743e9b4f9b4babd890f1fDSd08a01c4d33a44959484a6d9a7cb75b1m

Additional information

Weight 1.630 kg
Dimensions 10 × 10 × 10 cm
Brand Name

FNIRSI
FNIRSI Model

FNIRSI-1014D
Battery Included

Yes
Origin

Mainland China
High-concerned chemical

None
DIY Supplies

Electrical
Digital Channels

2
Model Number

FNIRSI-1014D
Record Length

30KB
IS Battery Demountable

No
Display Resolution

800*480 Pixels
Certification

CE
Real Time Sampling Rate

1GSa/S
Display Size

7 Inches & Above
Max Waveform Capture Rate

50, 000wfm/s
Band Width

100-349MHz
Size

340mm x 140mm x 70mm
Extension ports

USB picture export
Trigger edge

Rising edge/Falling edge
Trigger mode

Single, Normal, Auto
Coupling mode

AC/DC
ADC precision

8bits
Input resistance

1M
Storage depth

240Kbit
Maximum test voltage

40 V (1X probe), 400 V (10X probe)
Horizontal time base range

50S/div ~ 10nS/div
Vertical sensitivity

50 mV/div ~ 500 V/div
