FNIRSI LCR-ST2 Digital Tweezer Bridge 2-in-1 Meter SMD
Original price was: £59.00.£45.50Current price is: £45.50. & Free Shipping
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

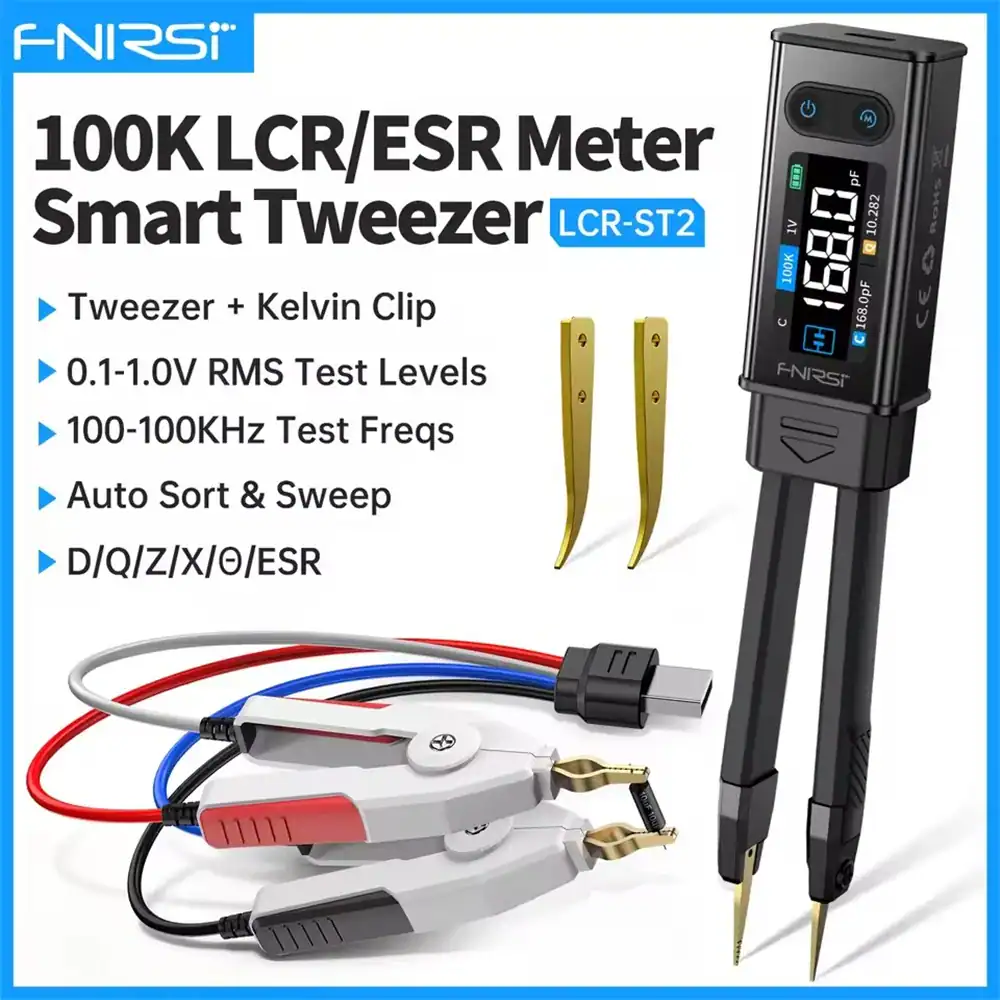

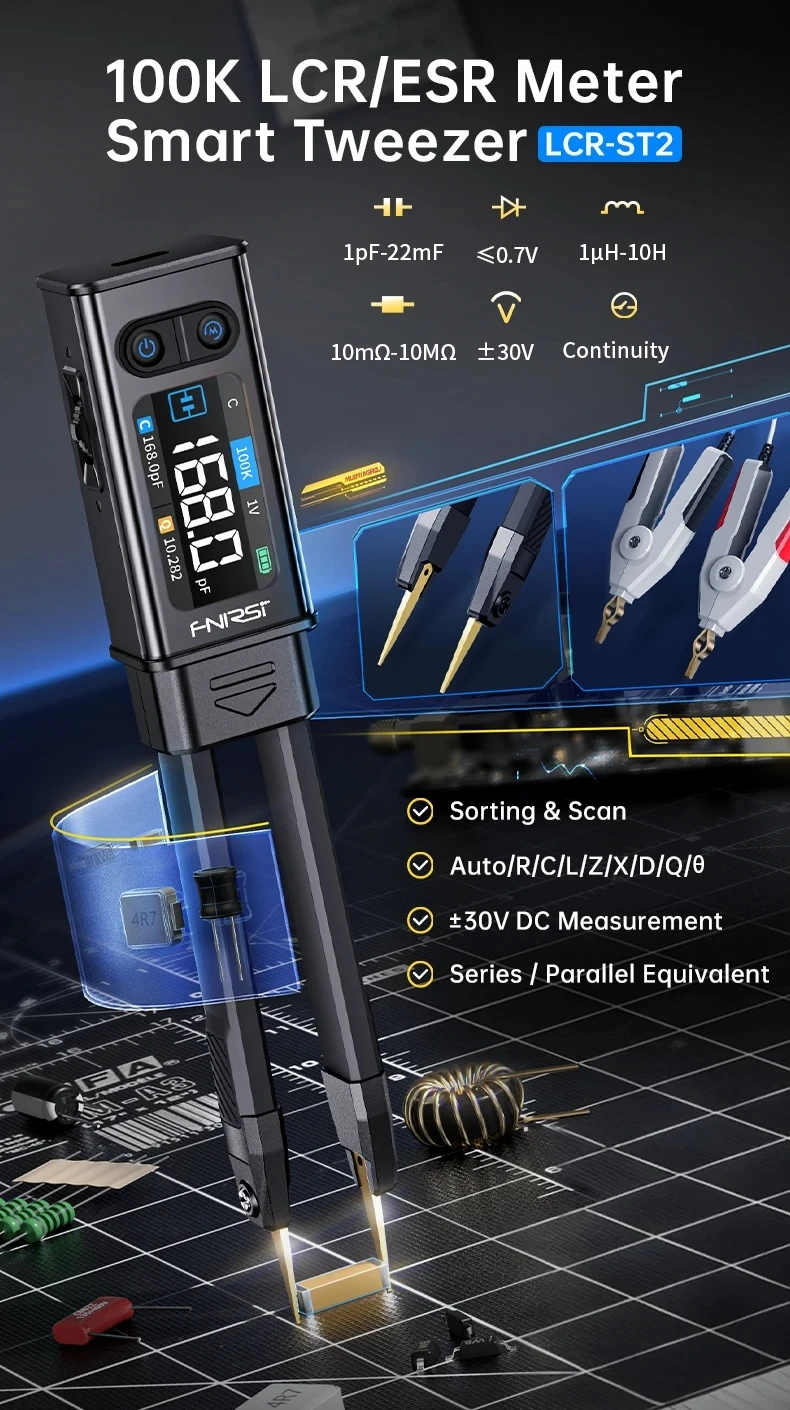

### FNIRSI LCR-ST2 Smart Tweezer LCR SMD Tester

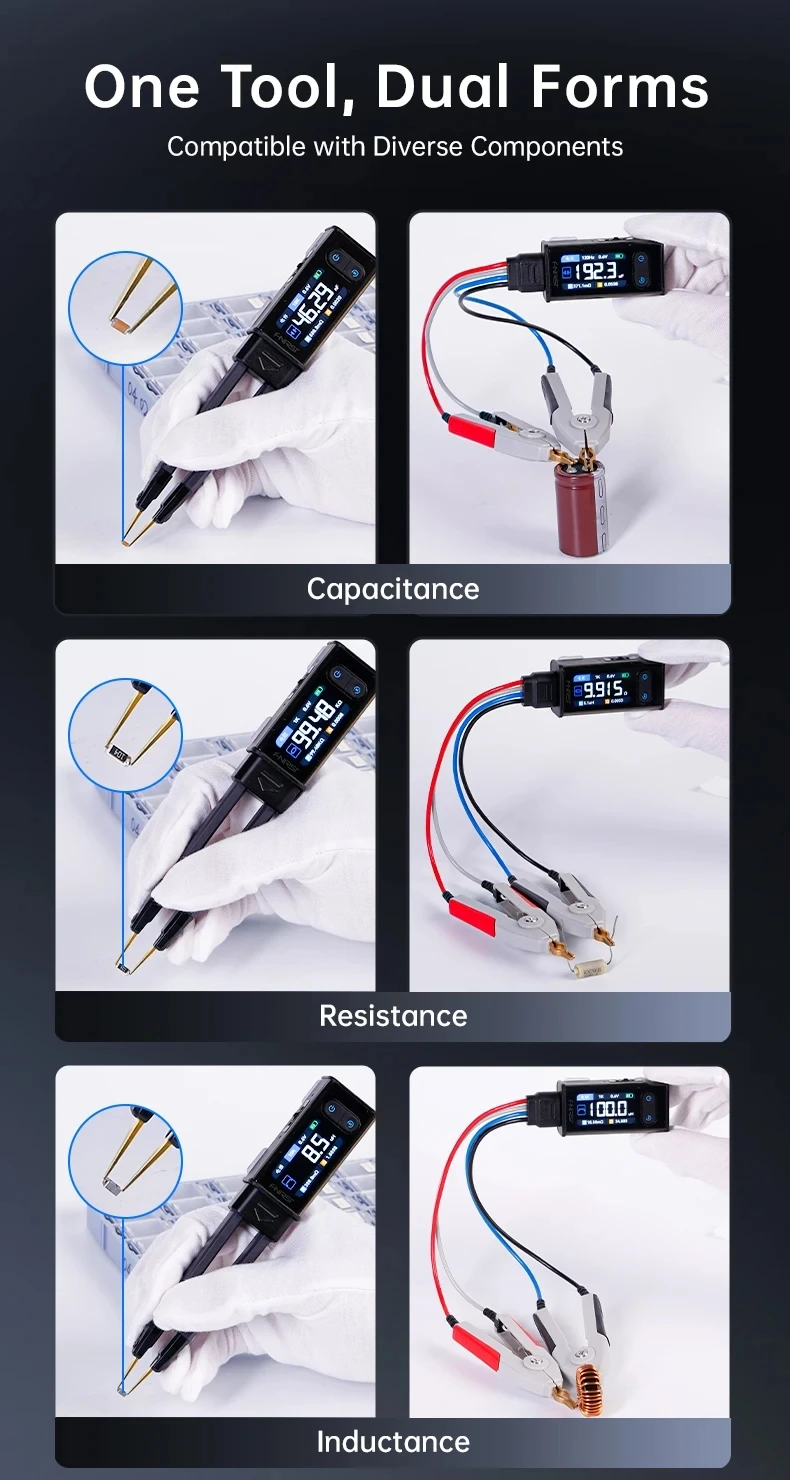

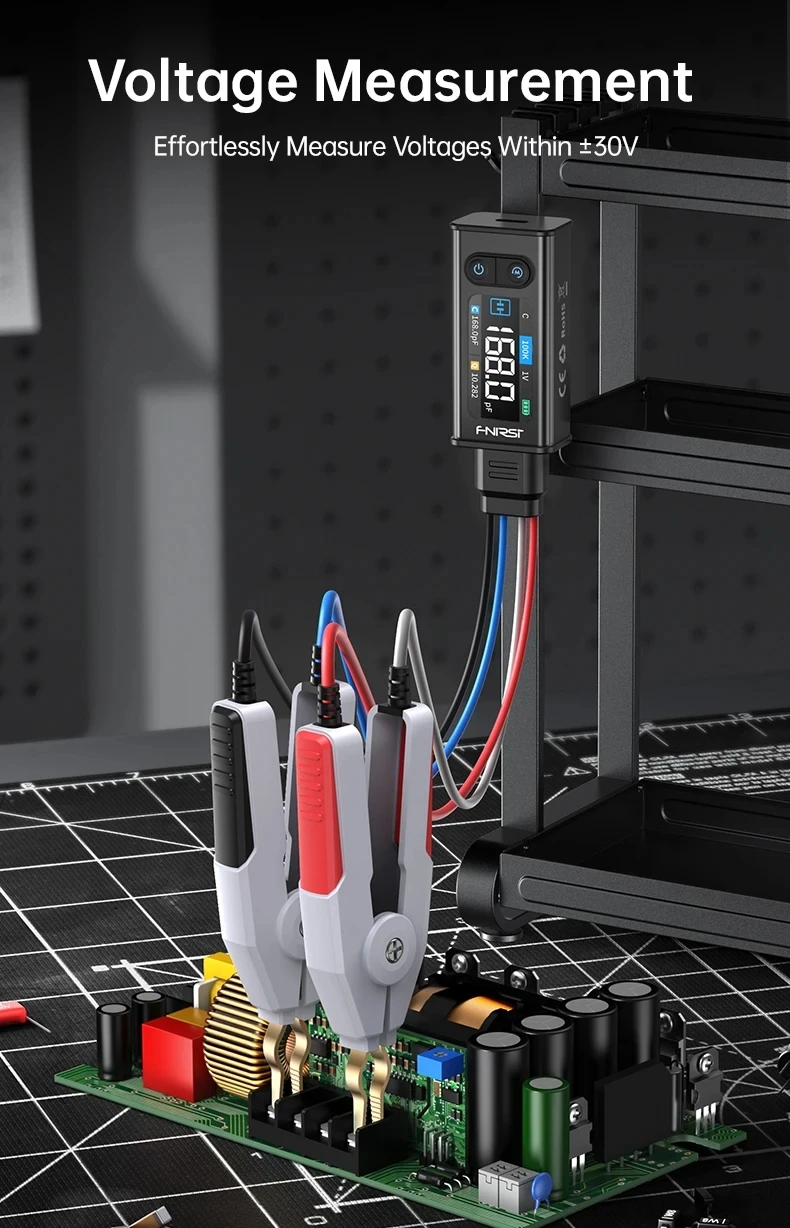

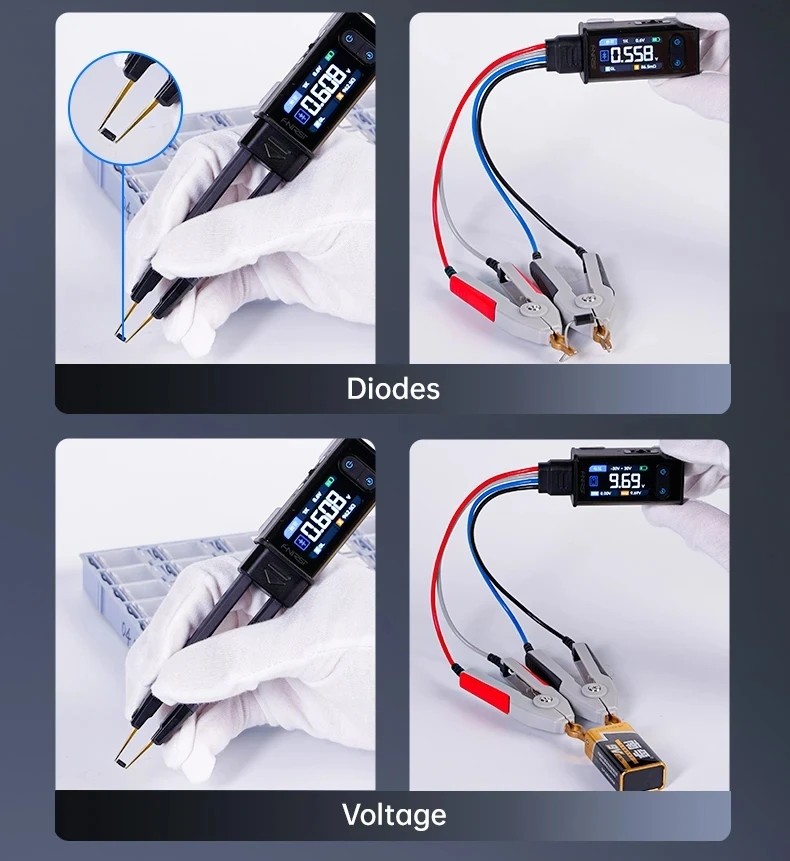

The FNIRSI LCR-ST2 Smart Tweezer LCR SMD Tester is a cutting-edge, multifunctional testing instrument designed for precision measurement of electronic components. This portable device excels in measuring resistance, capacitance, inductance, and diodes, as well as voltage measurements up to 30 V. With its advanced measurement technology, the LCR-ST2 guarantees high accuracy and stability, making it an essential tool for both field engineers and laboratory applications.
#### Key Features

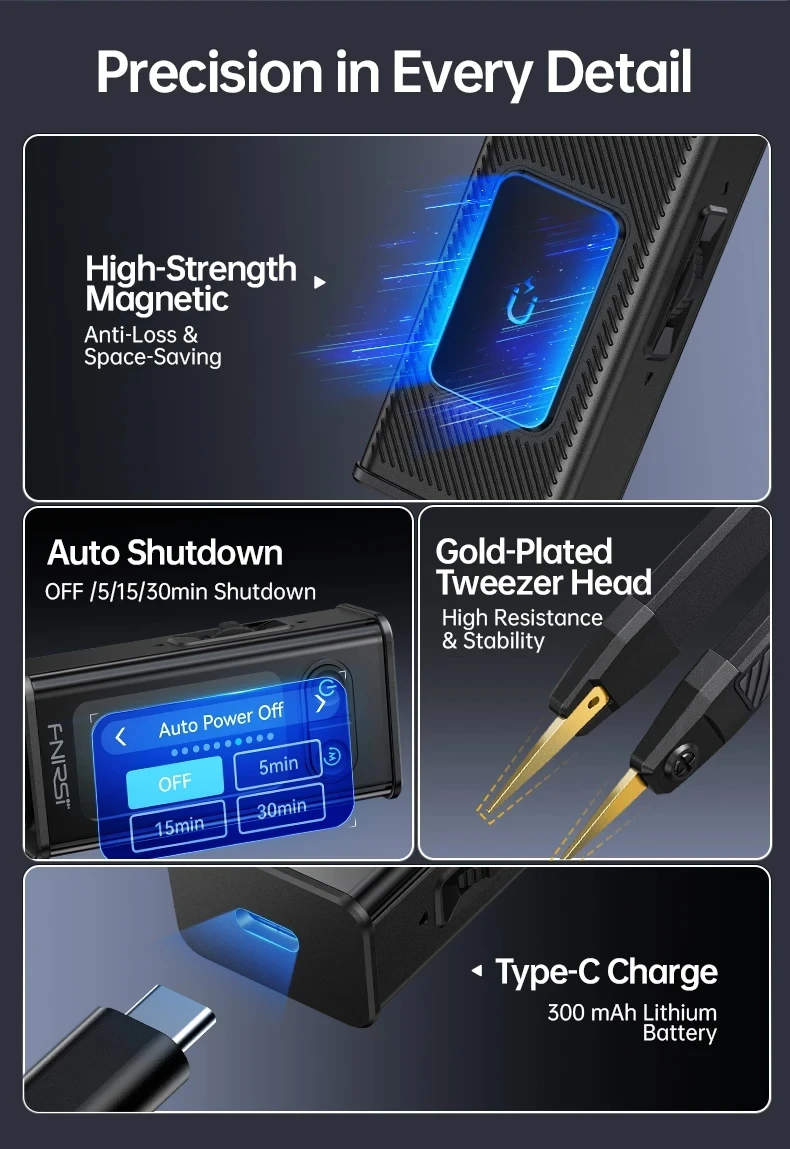

The LCR-ST2 is equipped with a 1.47-inch high-definition colour display, which enhances user experience by providing clear and concise readings. Its innovative magnetic attachment design allows for easy handling and portability, ensuring that the device can be used effectively in various environments. The built-in 300 mAh lithium battery offers approximately three hours of operating time, making it suitable for extended use without frequent recharging.

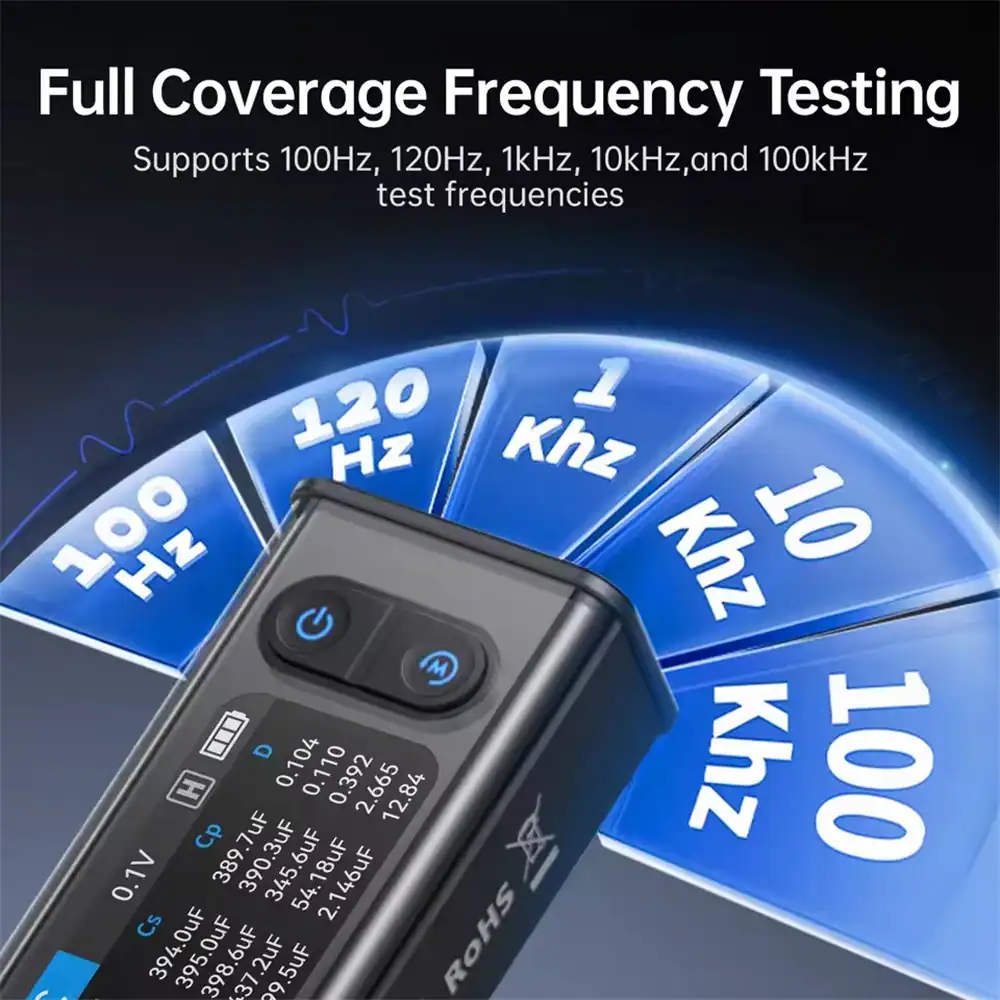

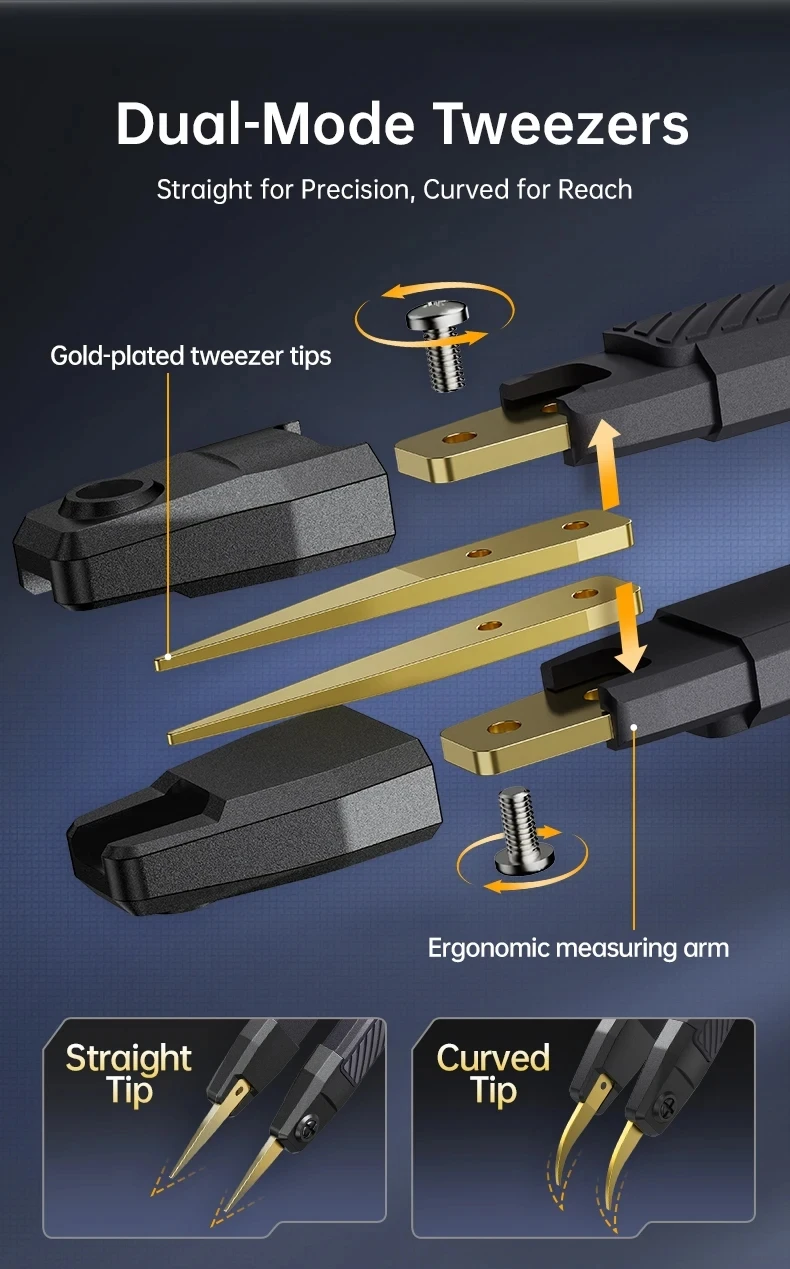

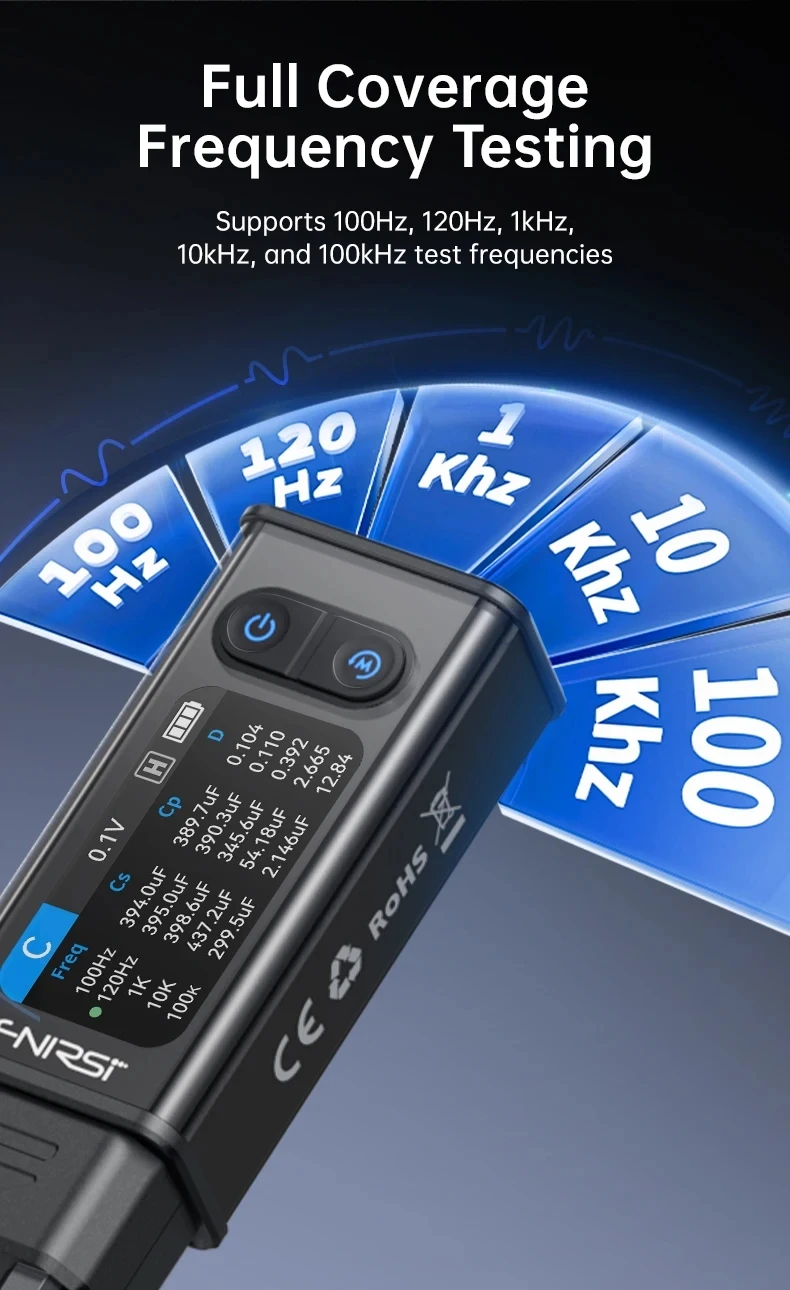

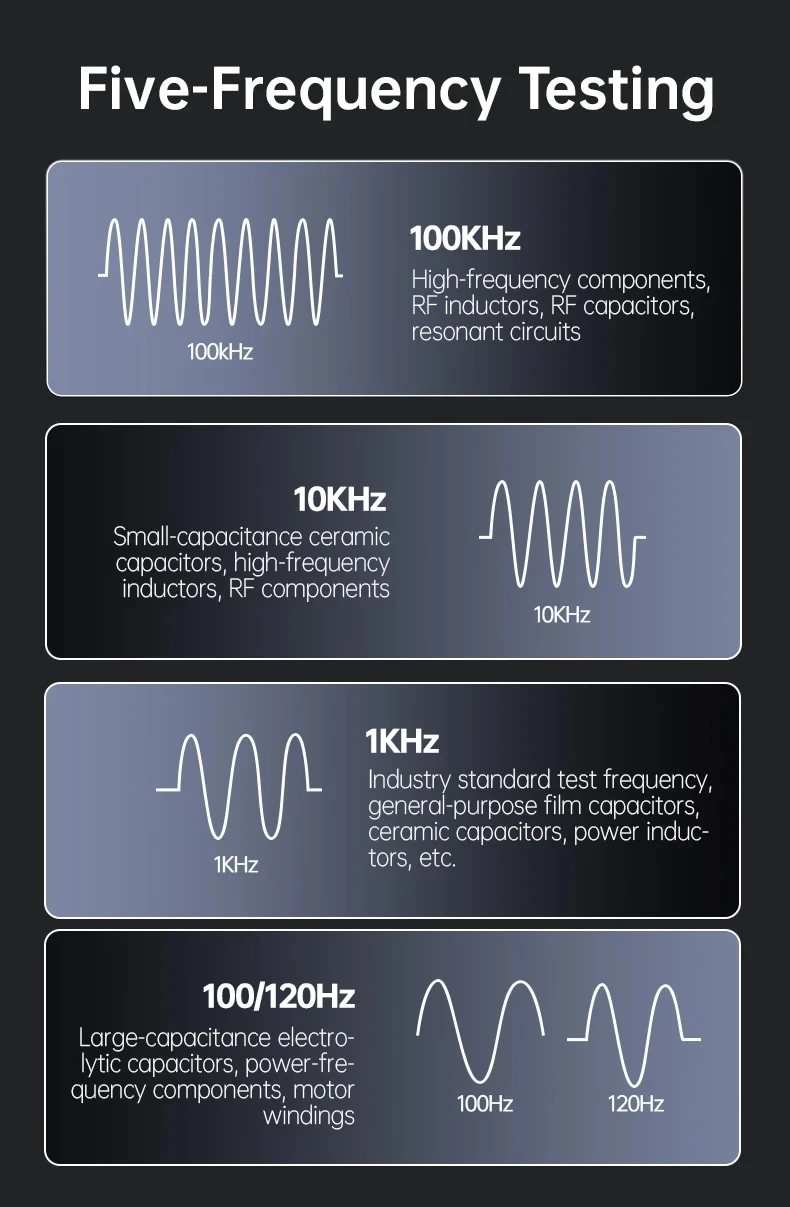

This instrument supports five test frequencies—100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz—allowing for versatile testing capabilities. The unique tweezer-style design is particularly advantageous for fine operations in confined spaces, enabling quick and efficient testing of electronic components.
#### Advanced Functionality

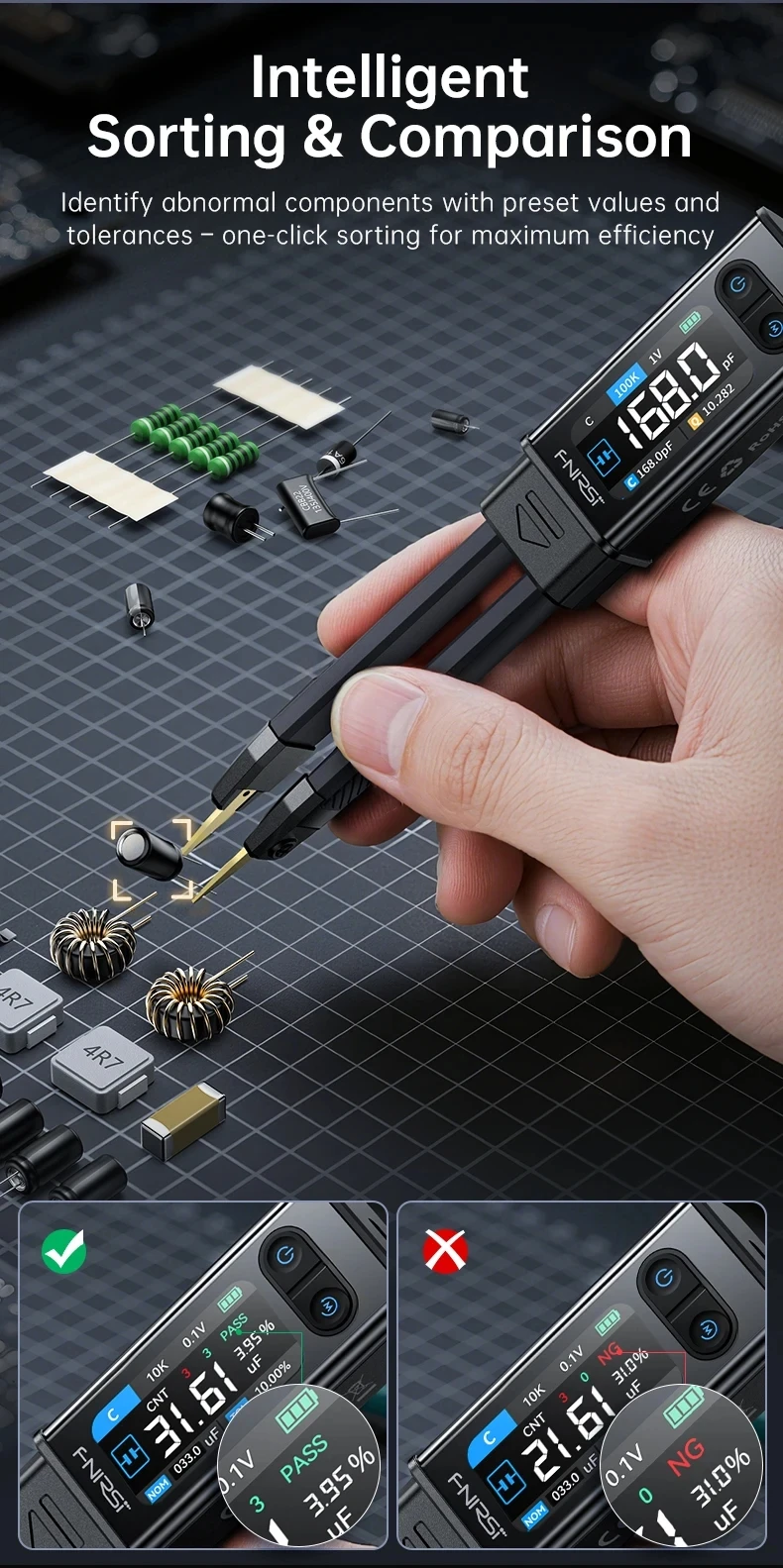

One of the standout features of the LCR-ST2 is its sweep function, which allows for rapid scanning of component parameters across the full frequency range. This capability enables users to obtain multi-frequency data with a single press, facilitating accurate component characterisation. Additionally, the intelligent sorting function automatically classifies and filters components, significantly improving batch testing efficiency.

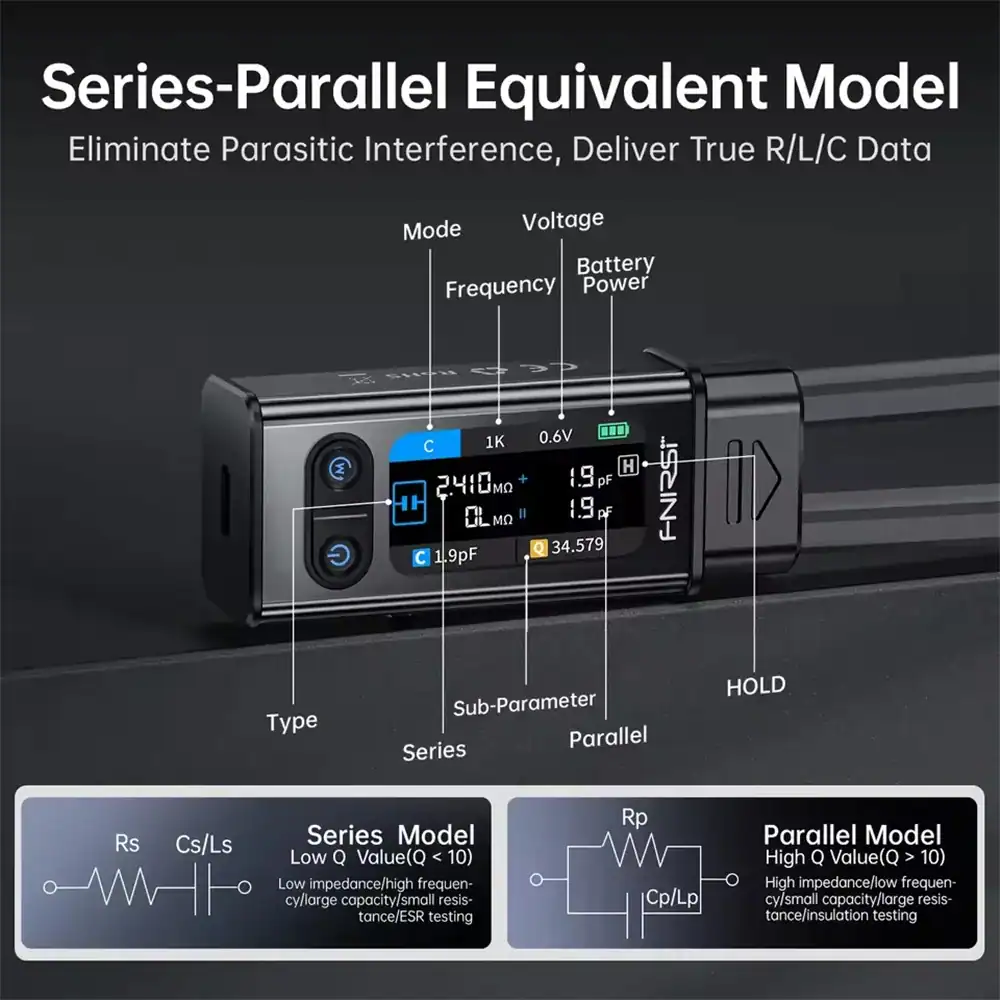

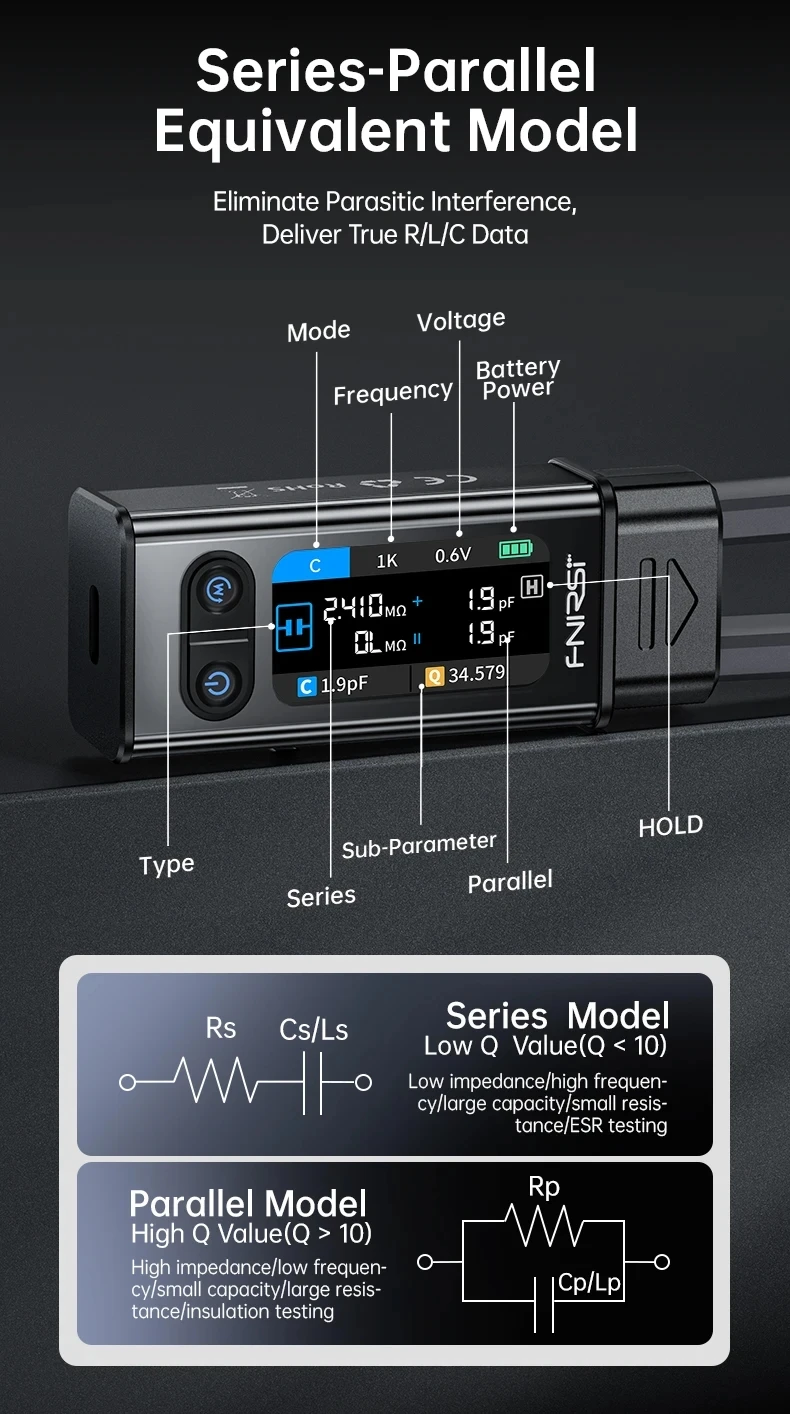

The dual-mode simultaneous display feature is another notable aspect, allowing two measurement modes to be displayed on the same screen for direct comparison. This makes result analysis more intuitive and user-friendly.

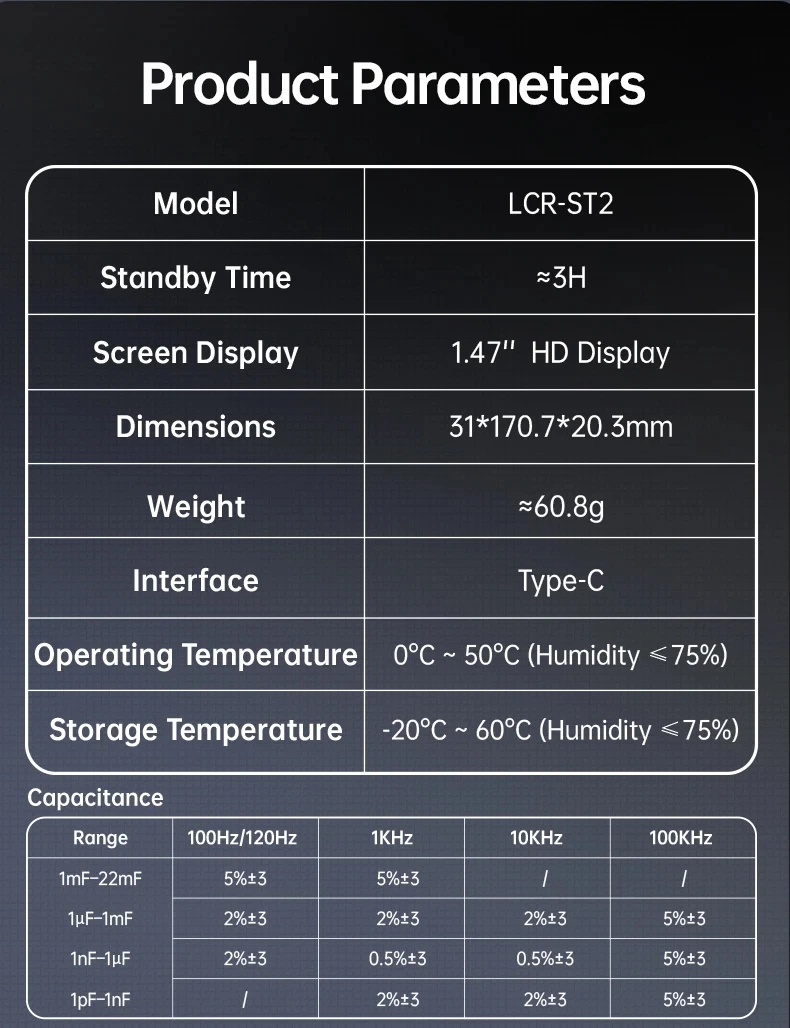

#### Specifications

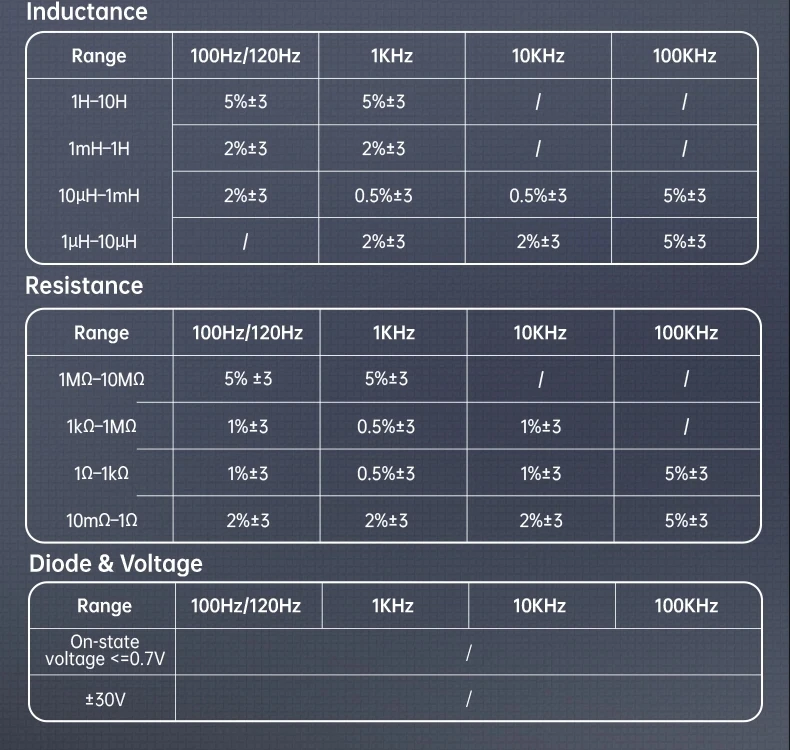

The LCR-ST2 operates within a temperature range of 0℃ to 50℃ (≤75% RH) and can be stored in conditions ranging from –20℃ to 60℃ (≤75% RH). It features adjustable screen brightness and sound, as well as auto recognition for resistance, capacitance, and inductance. The device has a capacitance range of 1 pF to 22 mF, an inductance range of 1 µH to 10 H, and a resistance range of 10 mΩ to 10 MΩ. It also includes diode forward voltage detection capabilities of ≤0.7 V.
#### Packaging Options

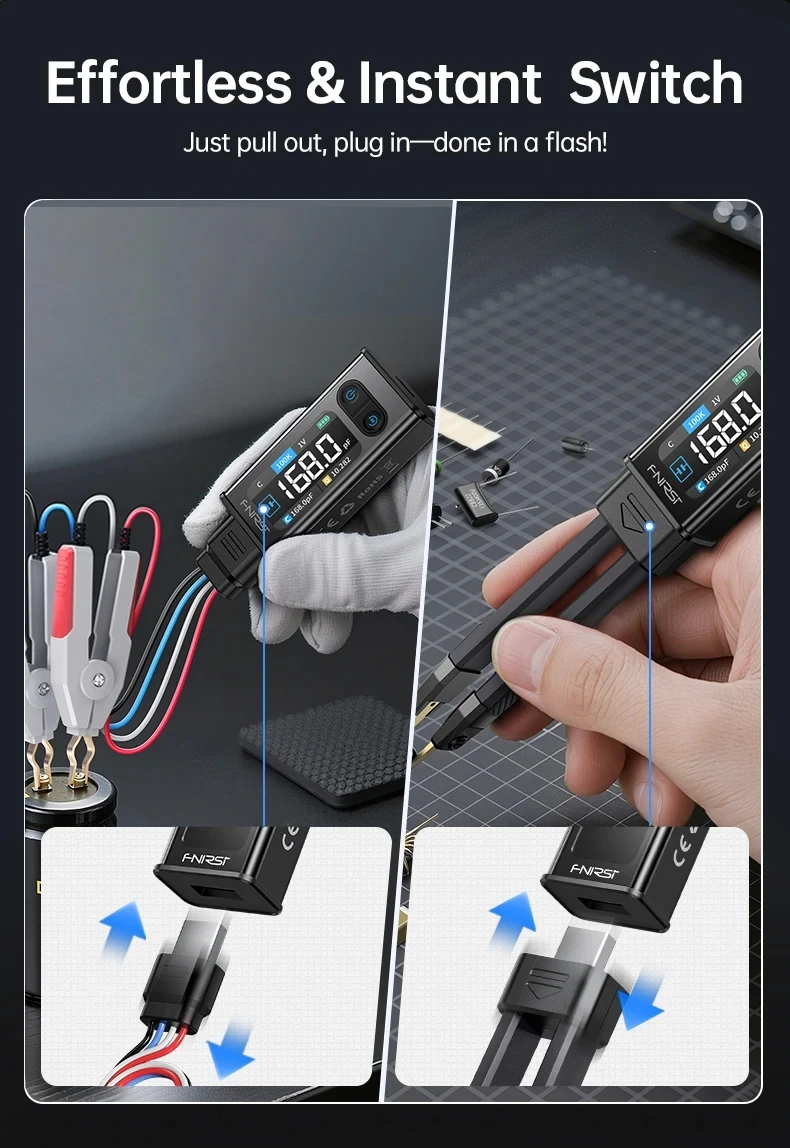

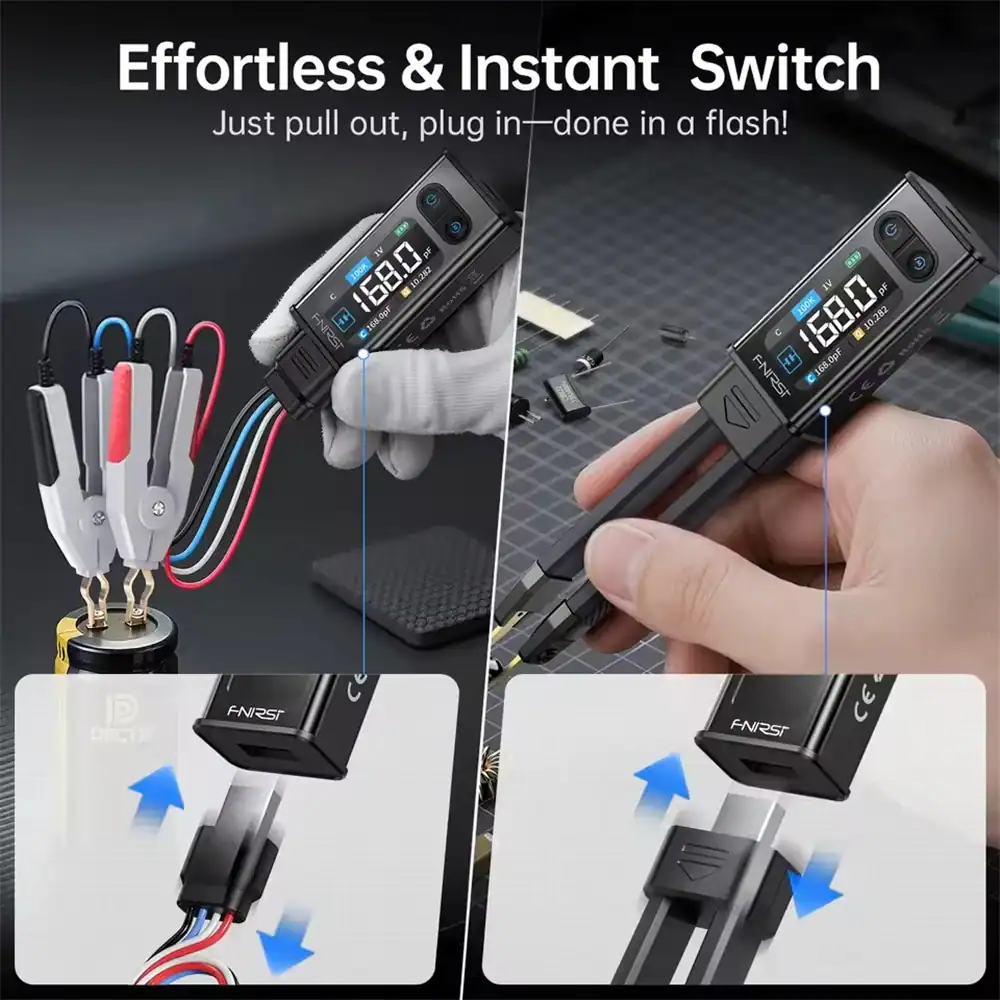

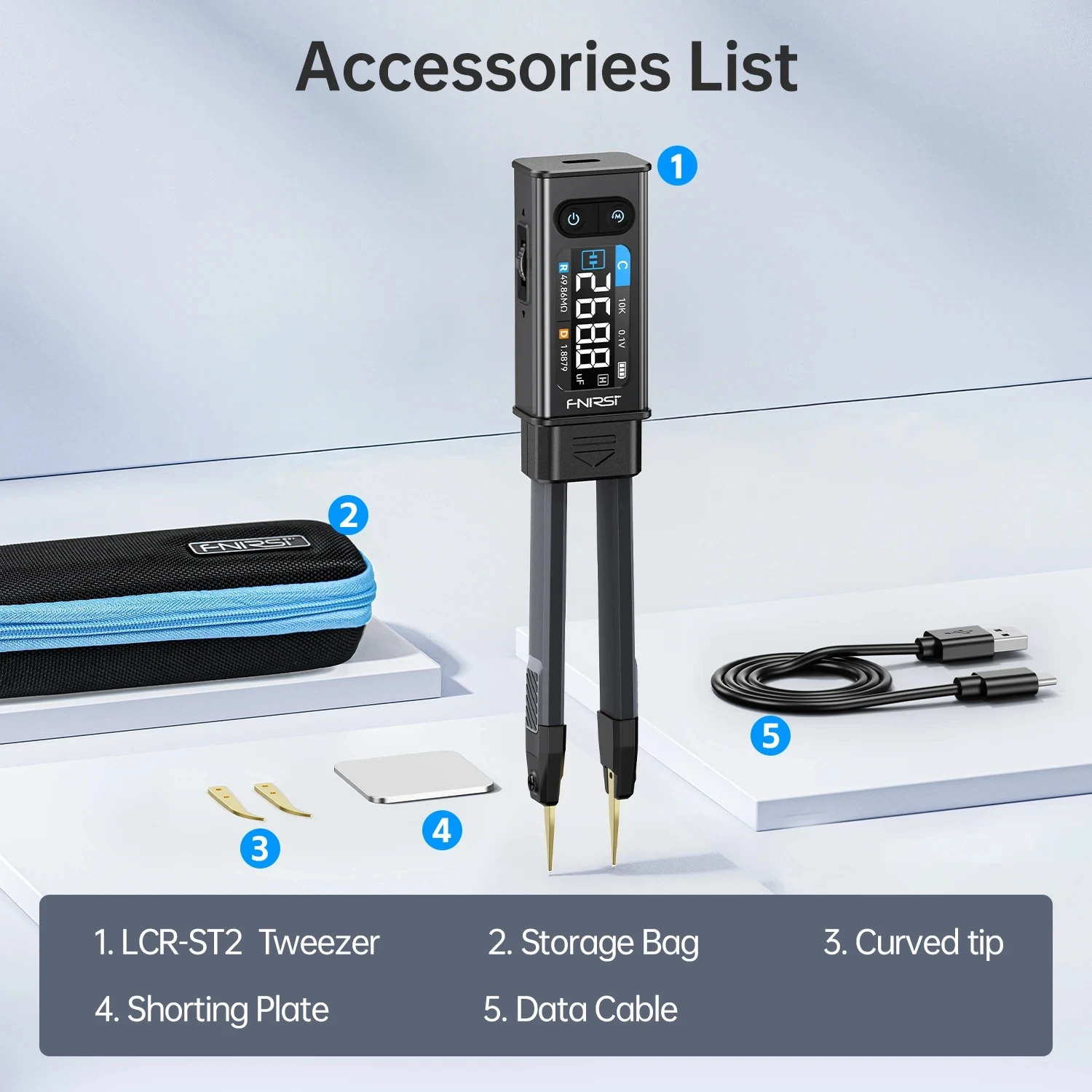

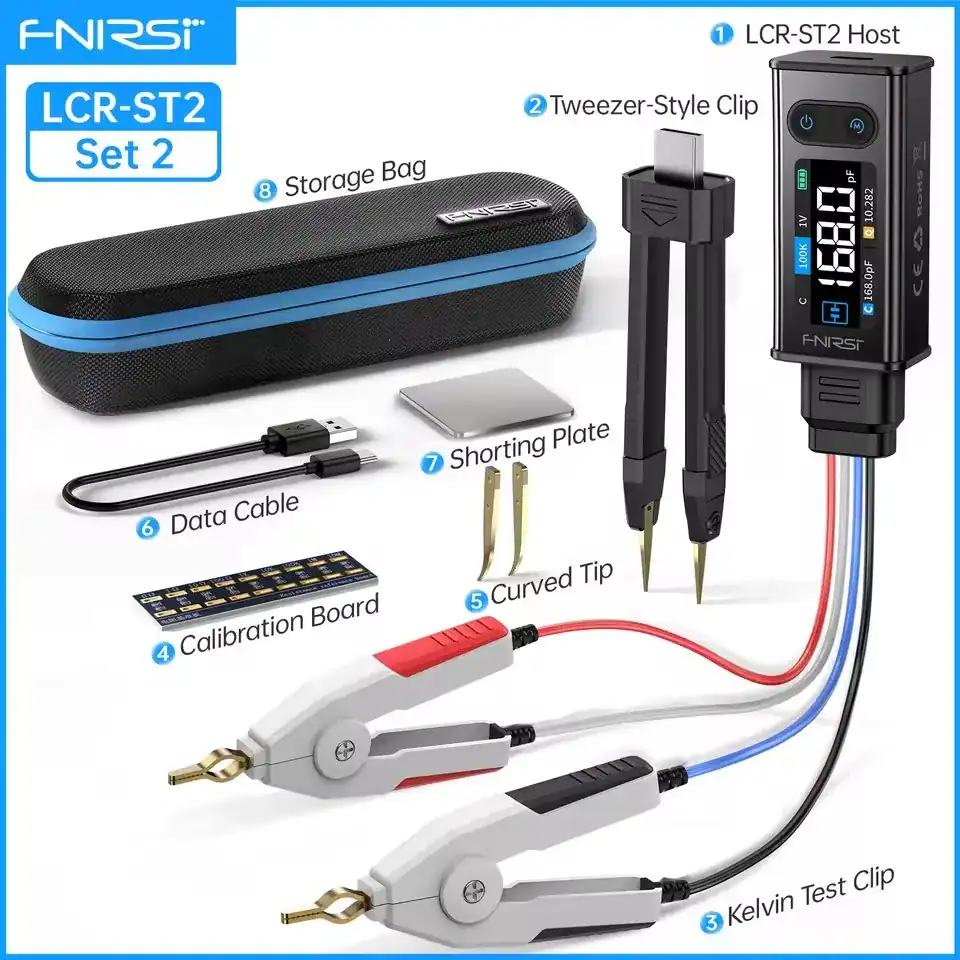

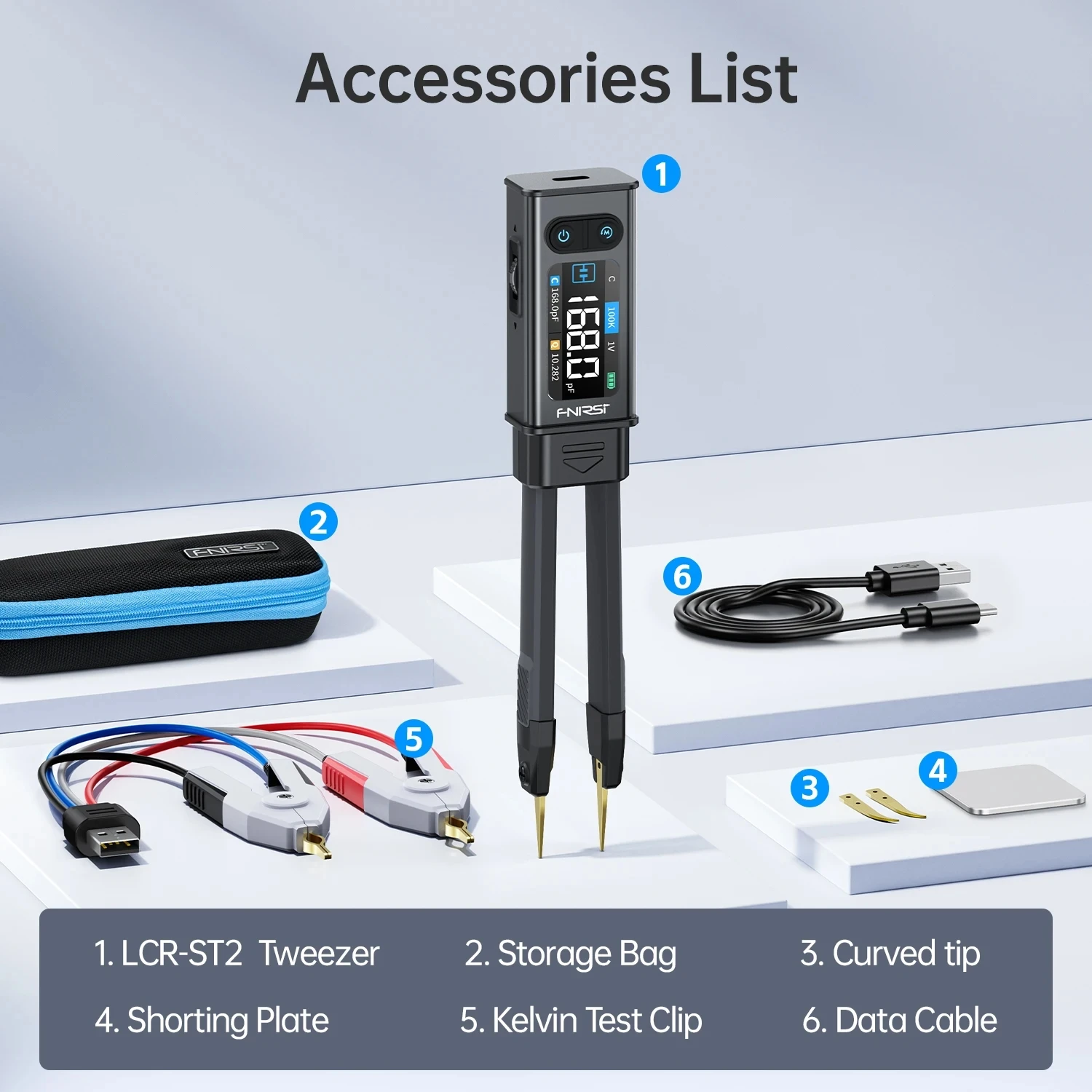

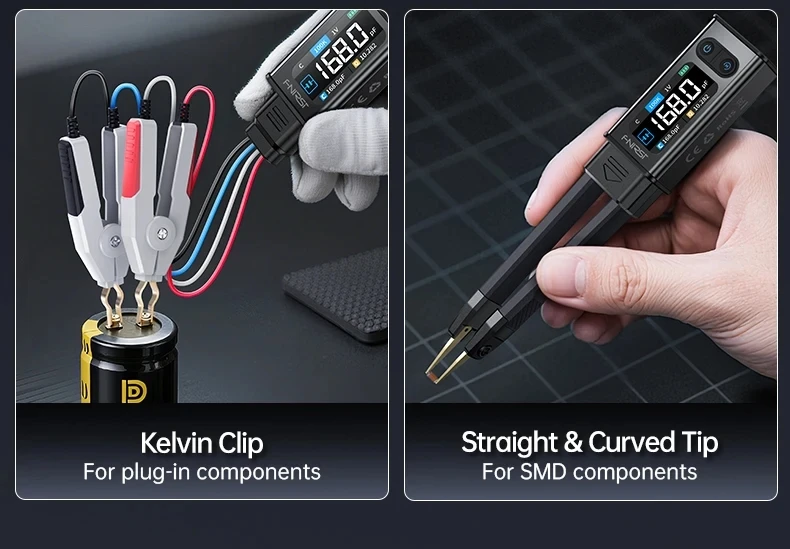

The LCR-ST2 is available in two sets. Set 1 includes the LCR-ST2 host with a tweezer-style clip, a storage bag, a curved tip, a shorting plate, and a data cable. Set 2 includes the same components as Set 1, with the addition of a Kelvin test clip for enhanced testing versatility.
In summary, the FNIRSI LCR-ST2 Smart Tweezer LCR SMD Tester is a high-efficiency tool that combines portability, advanced functionality, and user-friendly features, making it an indispensable instrument for anyone involved in electronics testing and analysis.
Additional information
| Weight | 0.300 kg |
|---|---|
| Dimensions | 21 × 8 × 6 cm |
| Brand Name | FNIRSI |
| FNIRSI Model | LCR-ST2 |
| Battery Included | Yes |
| DC Voltage | 30 |
| Origin | Mainland China |
| Operating Mode | Auto Range |
| High-concerned chemical | None |
| DIY Supplies | Electrical |
| AC Voltage | 30 |
| Display Type | Digital Display |
| Measuring Resistance Range | 10mΩ-10MΩ |
| Certification | CE |
| Measuring Capacitance Range | 1pF-22mF |
| Model Number | LCR-ST2 |
| Measuring Inductance Range | 1uH-10H |
| Dimensions | 31×170.7×20.3mm |
| Operating Temperature | 0 – 40 ℃ |
| Display | 1.47-inch HD color screen |
| Battery | 300mAh lithium battery |
| Charging Port | Type-C |
| Auto power-off | Never/ 5/15/30min |
| Language | English / Chinese |
| Diode forward voltage detection | ≤0.7V |
| Voltage range | ±30V |
| Frequency sweep | 100Hz – 100kHz |
26 reviews for FNIRSI LCR-ST2 Digital Tweezer Bridge 2-in-1 Meter SMD
Related products
-
Sale!
FNIRSI DMC-100 Clamp Meter TRMS AC/DC 600A
Original price was: £66.00.£46.90Current price is: £46.90. -
Sale!

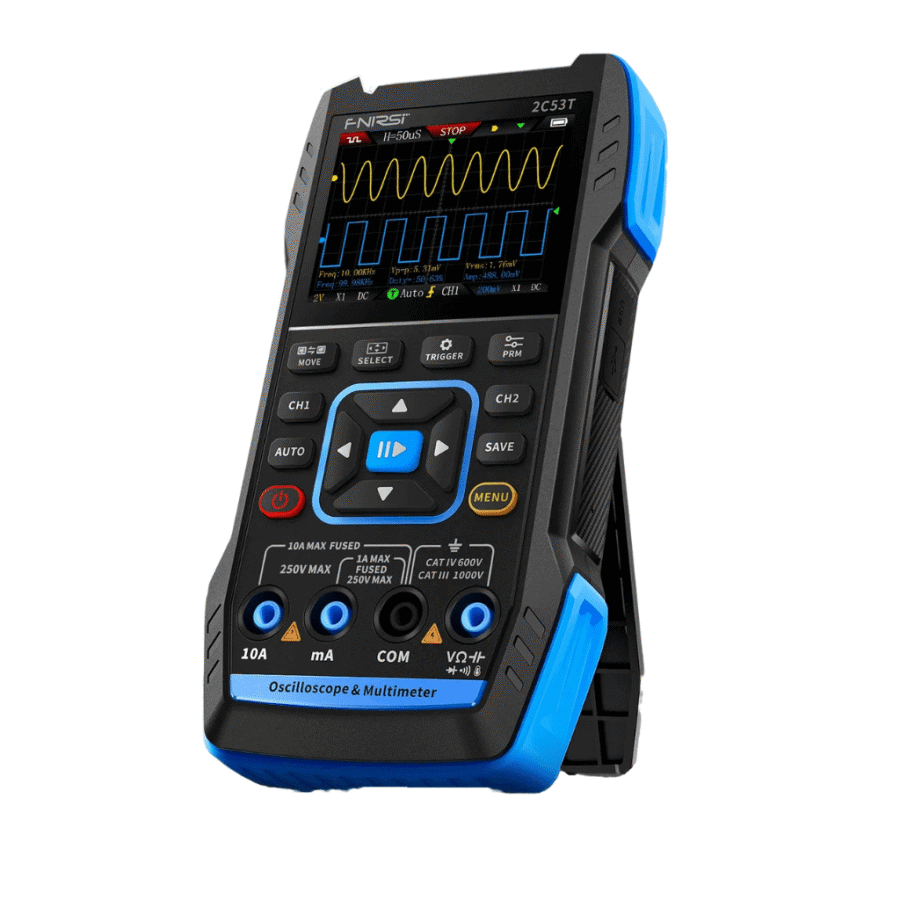

FNIRSI 2C53T 3 in 1 Oscilloscope 2 Channel Multimeter Signal Generator
