Description

The FNIRSI LC1020E Digital Bridge LCR ESR Tester is an advanced electronic component measurement tool designed for professionals and enthusiasts alike. This device offers a comprehensive range of features that facilitate precise testing of inductance (L), capacitance (C), resistance (R), and equivalent series resistance (ESR), making it an essential addition to any electronics lab.

#### Display and Accuracy

Equipped with a 2.8-inch TFT LCD display, the LC1020E presents measurement data clearly and concisely. The tester boasts a basic accuracy of 0.3%, ensuring reliable results for critical applications. The display features 4.5 digits for both the main and secondary parameters, allowing for detailed readings of component characteristics.

#### Versatile Testing Capabilities

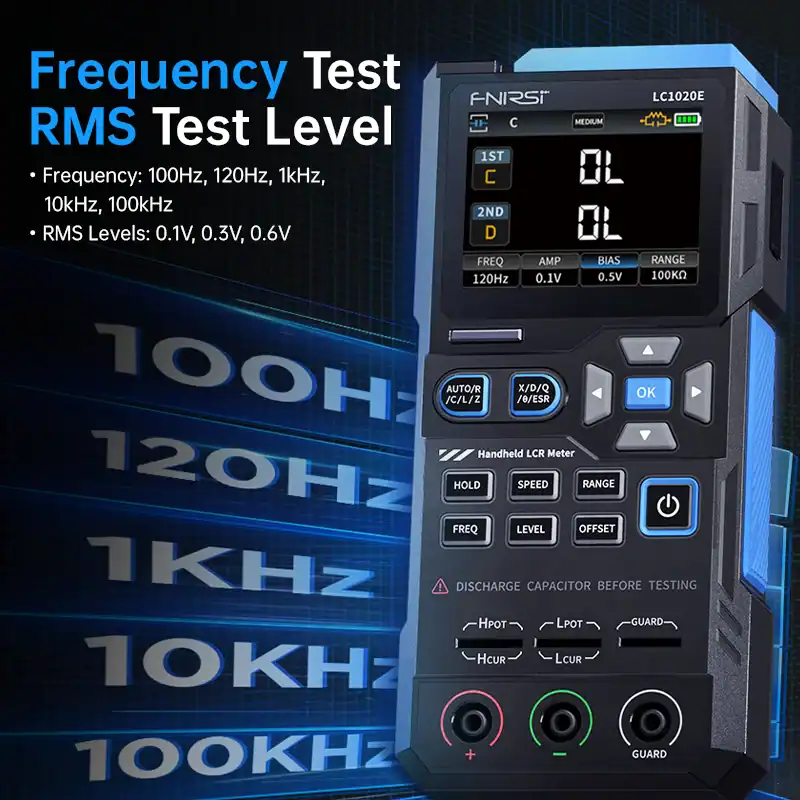

The FNIRSI LC1020E supports multiple test frequencies, including 100Hz, 120Hz, 1KHz, 10KHz, and 100KHz, providing flexibility for various measurement scenarios. Users can select test levels of 0.1V, 0.3V, and 0.6V, along with an internal bias option of 0.0V or 0.5V, catering to different component specifications.

#### Comprehensive Measurement Parameters

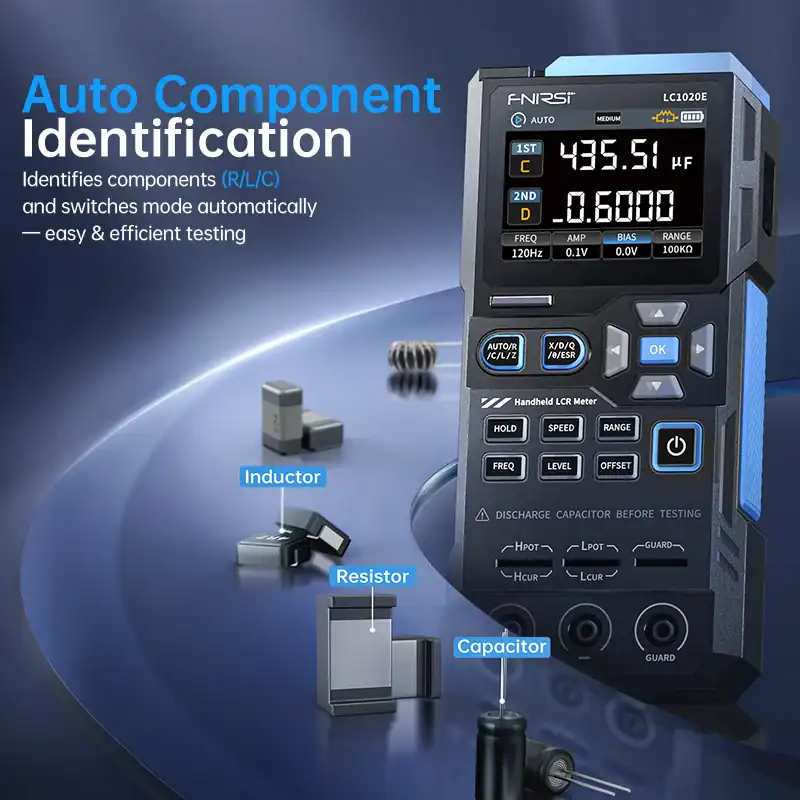

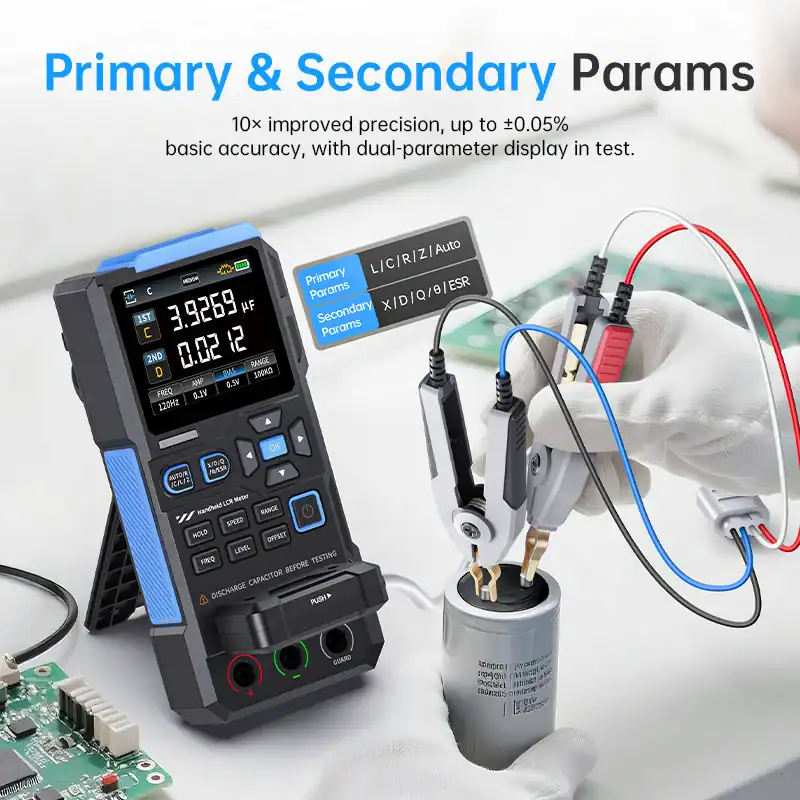

This tester measures a wide range of parameters, including AUTO/R/C/L/Z as main parameters and X/D/Q/θ/ESR as secondary parameters. The measurement ranges are extensive, with inductance from 0 to 100H, capacitance from 0 to 100mF, and resistance from 0 to 10MΩ. The measurement speed is adjustable, offering fast (4 times/s), medium (2 times/s), and slow (1 time/s) options to suit various testing needs.

#### Calibration and Comparison Functions

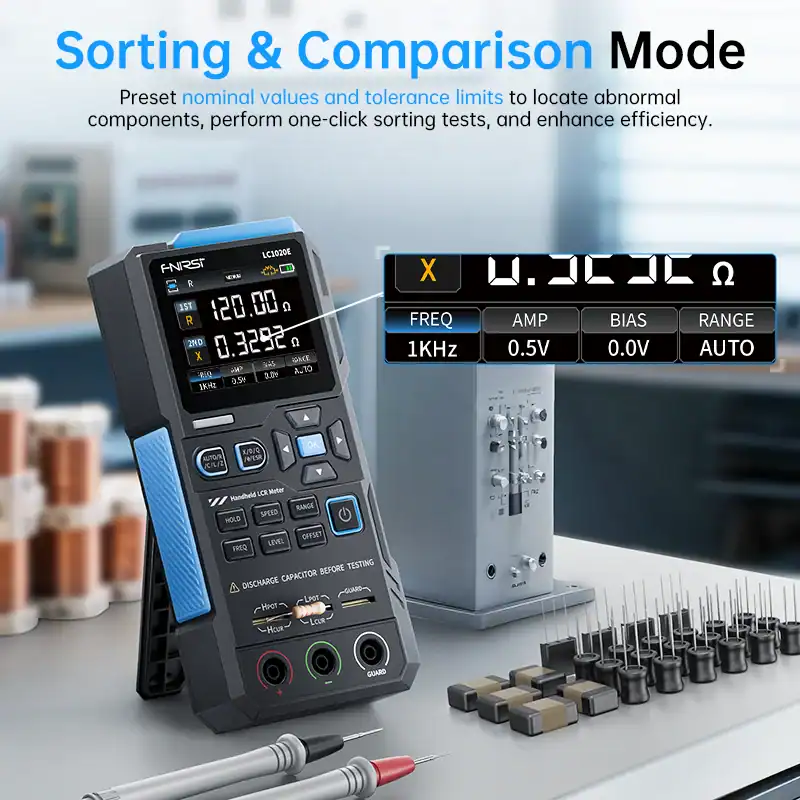

The LC1020E includes essential calibration functions, such as open circuit and short circuit calibration, ensuring accuracy in measurements. Its comparison function allows users to calculate the relative error between the measured component value and the nominal value, displayed as a percentage. Users can set nominal values and tolerances, with an adjustable tolerance range from 0.1% to 99.9%.

#### Data Recording and Test Configuration

The device features a record function that checks whether the measured component data meets the set nominal value and tolerance, keeping track of successful and failed measurements. The test terminal configuration includes both three-terminal and five-terminal options, enhancing versatility in testing different components.

#### Additional Features

The FNIRSI LC1020E is designed with user convenience in mind, offering a USB-Type C communication interface for easy connectivity. Other features include language settings, adjustable screen brightness, sound settings, auto power-off, calibration settings, and system information. The package includes the LC1020E host, data cable, shorting plate, Kelvin test clip, test leads (black and red), and a user manual.

In summary, the FNIRSI LC1020E Digital Bridge LCR ESR Tester is a robust and reliable tool for electronic component measurement, combining accuracy, versatility, and user-friendly features to meet the demands of both professionals and hobbyists in the field of electronics.

S33f0ba84c7c3429f8b5f536c6c4dd2c2eS1f4bbe28c6494ed18b3b2d15f2d03faeXS77835d35c1d745d28b7f7b872143c561zSfb2952978b0341b2a4a34064f7679701zS524d72b106ec4ba4adec814aada0b04b0S4c50f9fce41446ba9b72028d78c17673RSceb60ca6c3af434f92ddc89faa6eaa30YS4613d517fcf8405081919af7416920d3nSa9877b23788e4f569e9362f157537c93fS59da9562dad945cc98f49788d8359459ZS8d70dd08324c45b88fbfd372bd5a8ffb7S43cf4e2b21534080bfd5adc71180eb66ESd08a01c4d33a44959484a6d9a7cb75b1m

Additional information

Weight 0.800 kg
Dimensions 26 × 15 × 9 cm
Brand Name

FNIRSI
FNIRSI Model

LC1020E
Laser hazard level

Class 1（<1mW）
High-concerned chemical

None
Origin

Mainland China
Battery Included

Yes
Power Source

Rechargeable
Power Type

Rechargeable
Certification

CE
Model Number

LC1020E
Model

LC1020E
Display

2.8-inch TFT LCD Display
Basic Accuracy

Basic Accuracy
Display Digits

4.5 digits
Measurement Range

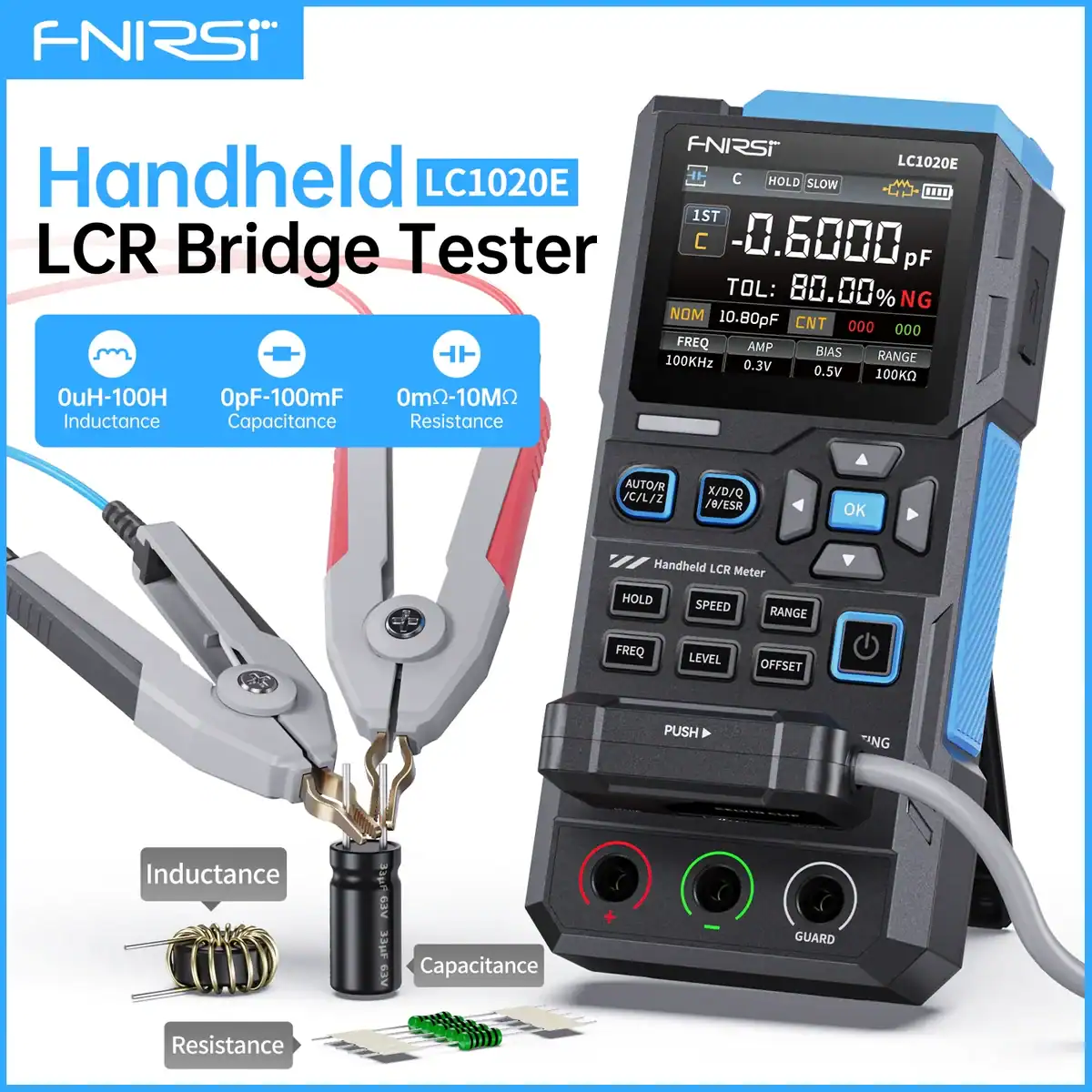

L: 0 – 100H C: 0 – 100mF R: 0 – 10MΩ
Measurement Speed

Fast (4 times/s), Medium (2 times/s), Slow (1 time/s)
Calibration

Open-circuit and Short-circuit
Power Supply

3.7V, 3000mAh
Interface

USB-Type C
Component sorting

Supported
Data logging

Supported
Auto power-off

Supported
